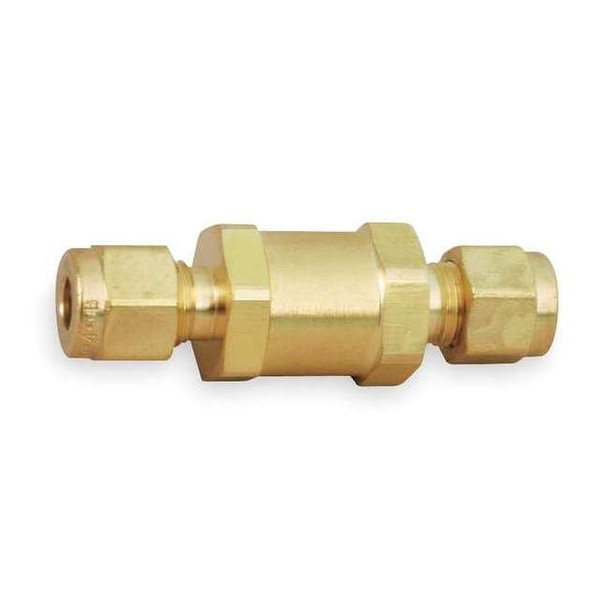

Parker 1-4" A-LOK(R) Brass Instrumentation Check Valve 4A-C4L-10-BN-B

PARKER 4A-C4L-10-BN-B is a 1/4 in A-LOK brass instrumentation check valve designed for one-way flow control in fluid and gas lines. This inline poppet valve features compression x compression connections and a 10 psi cracking pressure for one-way flow control in instrumentation and process systems. It can be mounted horizontally or vertically and has an operating temperature range of -30 Degrees F to 275 Degrees F. Key Features: Brass body construction for instrumentation check valve service 1/4 in compression x compression A-LOK connections on both sides Inline poppet design with single flow path Cracking pressure: 10 psi Flow coefficient: Cv 0.75 Maximum operating pressure: 3,000 psi Maximum water pressure: 3,000 psi CWP / 3,000 psi @ 100 Degrees F Seal material: Buna-N/Nitrile Seat material: FKM, Nitrile Spring material: 316 stainless steel Mounting orientation: horizontal or vertical Overall length: 2.42 in Hex size: 3/4 in Standards: ASTM B16
