Swing Check Valve, 1 1-4 in Pipe Size, IPS Slip x IPS Slip, Inline, PVC Body 1520-12

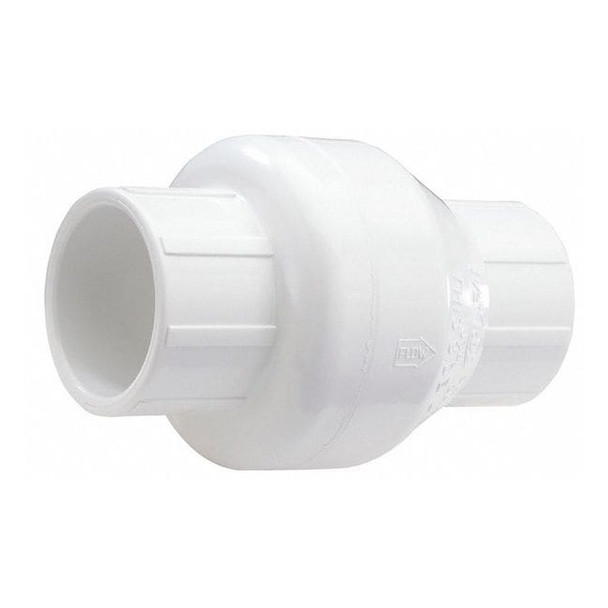

This NDS swing check valve is an inline, single-flow valve that uses a swing check mechanism for one-way flow control and backflow reduction in compatible applications. It is made of PVC with an EPDM seal and PVC seat, and is intended for compatible water-service applications. The valve has a 1 1/4 in nominal size with IPS slip x IPS slip hub connections and can be mounted horizontally or vertically. Key Features: Inline swing check design for one-way flow control 1 1/4 in nominal valve size with 1 1/4 in connections on both sides PVC body with PVC seat EPDM seal material IPS slip x IPS slip hub connections 0.25 psi cracking pressure 34.96 gpm flow rate Pressure ratings: 125 psi at 72 degrees F maximum pressure; 150 psi at 70 degrees F maximum water pressure Temperature range: 14 degrees F minimum to 140 degrees F maximum Horizontal or vertical mounting orientation Full-flow configuration: Yes NSF 61 Overall dimensions: 5.32 in length, 3-1/2 in height, 3.16 in width
