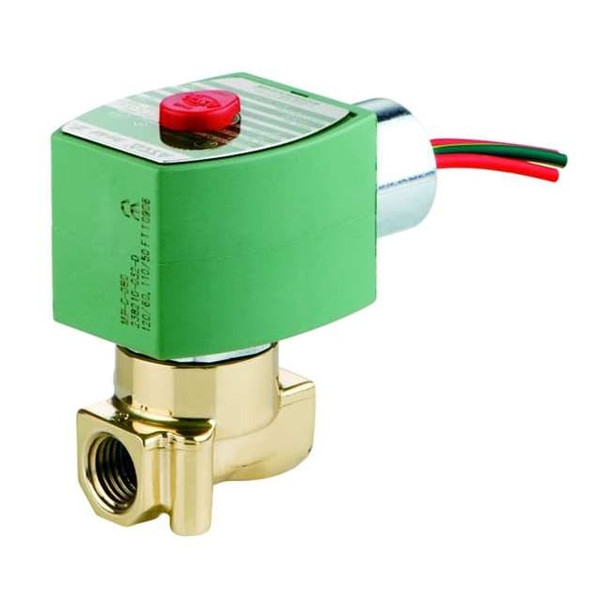

Asco 8262H202

The ASCO 8262H202 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and an orifice diameter of 5/32 inch. The valve includes a coil with Class H insulation operating at 24V DC and consumes 10.1 watts. The valve is rated for horizontal or vertical mounting. IP66 rating provides dust and water protection; environmental suitability beyond IP66 is not specified. It is certified to CSA and UL standards. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Body Material: Brass with NBR seal - Operating Voltage: 24V DC, 10.1 W coil power consumption - Media Compatibility: Air, Inert Gases, Light Oil, Water - Operating Pressure Differential: 0 to 65 psi air/inert gas, 0 to 63 psi light oil and water - Temperature Ratings: Ambient 14°F to 140°F; Fluid Maximum 180°F - Connections: Inlet and Outlet NPTF threads, Nominal Pipe Size 1/4 in - Mounting Orientation: Horizontal or Vertical - Coil Enclosure: IP66-rated for ingress protection; without junction box; Electrical Connections: 1/2 in Conduit with 18 in Leads - Dimensions (HxLxW): 3-1/8 in x 1-9/16 in x 1-15/16 in - Response Time: 1 second - Environmental and Construction Ratings: IP66; protection against dust and water; does not imply suitability for corrosive or hazardous environments beyond IP66 - Standards: CSA, UL Listed
