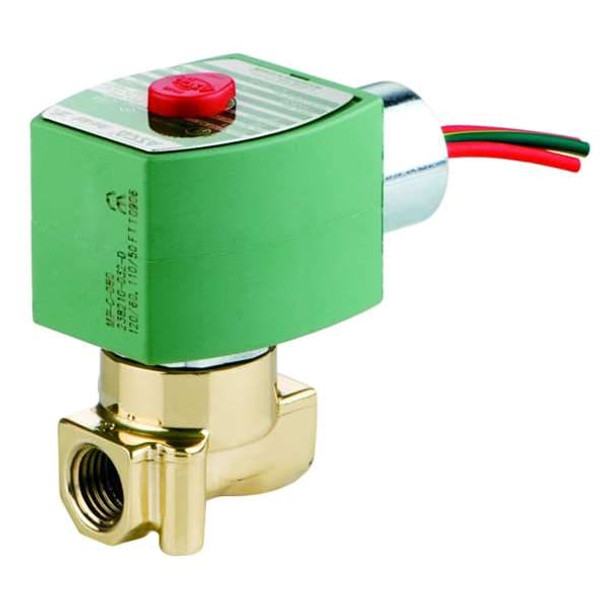

Asco 8262H202

The ASCO 8262H202 is a direct-acting, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. Featuring a brass body and NBR seal material, this 2-way, 2-position valve rated for operation at 240V AC with a coil wattage of 10.1 W and coil insulation rated Class F. The valve supports both horizontal and vertical mounting orientations and is enclosed in a watertight coil housing without a junction box to protect electrical components. Response time: 1 second under defined test conditions. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed configuration - Operating Pressure Differential: Maximum 210 psi (Air/Inert Gas), 145 psi (Light Oil), 200 psi (Water); Minimum 0 psi for all listed media - Nominal Pipe Size: 1/4 in with NPTF inlet and outlet connection types - Maximum Ambient Temperature: 140°F; Minimum Ambient Temperature: 14°F - Maximum Fluid Temperature Rating: 180°F - Coefficient of Volume (Cv): 0.52 with a 5/32 in orifice diameter - Electrical Connections: 1/2 in conduit with 18 in leads - Environmental ratings: IP66; NEMA 4 enclosure rating - Physical Dimensions: Overall Height 3-1/8 in; Length 2-13/16 in; Width 1-15/16 in - Includes Coil and Seal components
