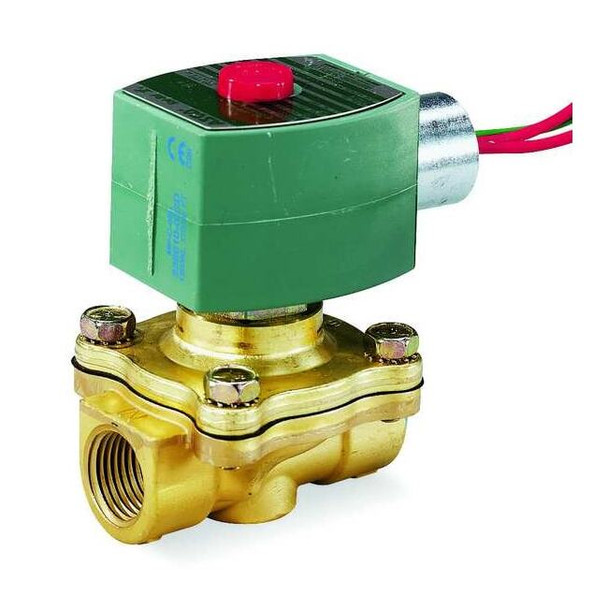

Asco 8210G001

The ASCO 8210G001 is a pilot-operated, 2-way/2-position solenoid valve featuring a normally closed starting configuration. It provides electromechanical control of fluid or gas flow through an internal 5/8 inch orifice, with a flow coefficient (Cv) of 3. The valve body is constructed from brass and is equipped with an NBR seal. It is designed for vertical mounting and can handle media including air, inert gases, light oil, and water. The valve is rated to operate within a fluid temperature range up to 180°F and an ambient temperature range from 14°F to 140°F. Key Features: - Valve Design: 2-Way/2-Position, pilot operated - Starting Configuration: Normally closed - Orifice Diameter: 5/8 in - Flow Coefficient (Cv): 3 - Body Material: Brass - Seal Material: NBR - Media Compatibility: Air, Inert Gas, Light Oil, Water - Maximum Fluid Temperature: 180°F - Ambient Operating Temperature: 14°F to 140°F - Operating Pressure Differential (Maximum): 200 psi (Air/Inert Gas), 135 psi (Light Oil), 150 psi (Water) - Operating Pressure Differential (Minimum): 5 psi (Air/Inert Gas, Light Oil, Water) - Electrical Voltage: 120V AC at 50/60 Hz - Wattage: 6.1 W - Coil Enclosure: Watertight without junction box - Electrical Connections: 1/2 in conduit hub - Environmental Rating: Indoor, Outdoor - IP Rating: 66 - Includes: Coil and seal - Mounting Orientation: Vertical - Dimensions (L×W×H): 2-3/4 in × 2-5/16 in × 3-7/16 in - Response Time: 1 second - Nominal Pipe Size: 3/8 in, with NPTF inlet/outlet connections - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X - Standards: UL Listed
