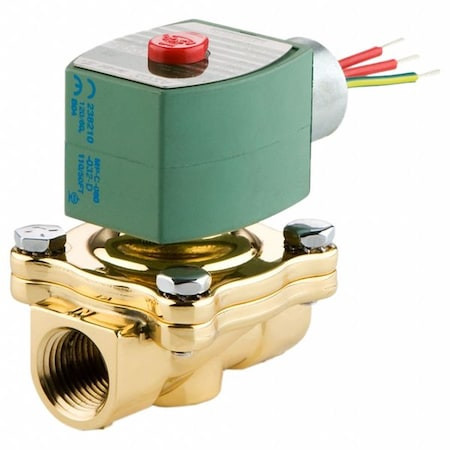

Asco 8210G001LF 120-60,110-50

The ASCO 8210G001LF is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It operates with a normally closed valve position and features an orifice diameter of 5/8 inch. The valve provides automated control in pneumatic and hydraulic systems with a 2-way flow path. It is built with a brass body and NBR seal material, and includes the coil necessary for operation. Key Features: - Operating Voltage: 110/120 V AC at 50/60 Hz - Coil Power Consumption: 6.1 W - Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections - Operating Pressure Differential: 5 to 350 psi (Air/Inert Gas), 5 to 135 psi (Light Oil), 5 to 150 psi (Water) - Ambient Temperature Range: 14 to 140 °F - Response Time: 1 sec - Mounting Orientation: Vertical - Electrical Connections: 1/2 in conduit hub - Environmental Rating: Indoor and outdoor use - Valve Positions: 2-position (open/closed) - Standards: UL Listed
