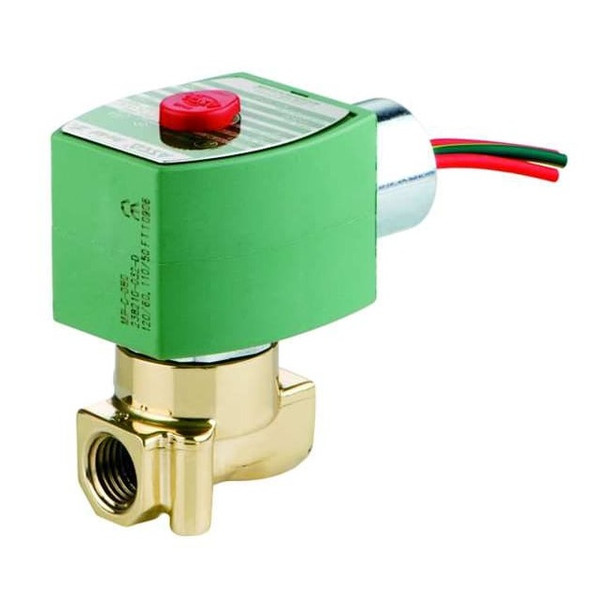

Asco 8262H022LF 240-60, 220-50

The ASCO 8262H022LF is a direct-acting, normally closed 2-way solenoid valve designed to control the flow of various fluids and gases, including air, water, and light oils. It is constructed with a brass valve body and is suitable for installation in either horizontal or vertical orientations. The valve operates with a coil rated for 220V/50Hz or 240V/60Hz electrical supply and is equipped with 16-inch leads for electrical connection. It includes both the coil and seal for installation, with ambient operating temperature: down to -13°F; fluid temperature range: up to 180°F. Key Features: - Valve Design: 2-Way/2-Position configuration with Normally Closed starting position - Body Material: Brass construction - Operating Pressure Differential: 0 to 185 psi for air/inert gas, 0 to 90 psi for light oil, and 0 to 180 psi for water - Orifice Diameter: 1/8 in - Connections: NPTF inlet and outlet with 1/4 in nominal pipe size and 2-9/16 in center line pipe center size - Coil: Class F insulation, wattage 6.1 W, coil enclosure type F - Electrical Connections: 16 in Leads - NEMA Enclosure Rating: 4X and IP Rating 65 - Seal Material: NBR (Buna-N) - Dimensions: Overall length 1-5/16 in, width 1-11/16 in, height 2-31/32 in - Response Time: 1 second - Compliance: Certified to CSA and UL standards
