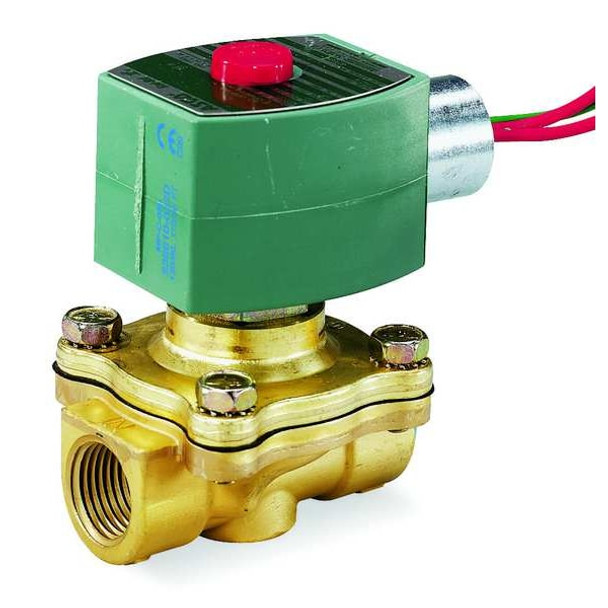

Asco 8210G094LF 12-DC

The ASCO 8210G094LF 12/DC is a normally closed, pilot-operated 2-way solenoid valve designed for automated control of air, inert gases, light oil, and water flow. Constructed with a brass body and NBR seals, this valve operates over an ambient temperature range of 14°F to 140°F and handles fluid temperatures up to 180°F. The valve features Orifice diameter: 5/8 inch; Cv: 4. Response time: approximately 1 second (under defined operating conditions). Key Features: - Valve Design: 2-Way/2-Position, Normally Closed configuration - Body Material: Brass with NBR seal material - Operating Pressure Differential: 0 to 40 psi for air/inert gas; 0 to 150 psi for water - Orifice Diameter: 5/8 inch; Cv: 4 - Electrical Specifications: 12V DC voltage, 10.1 W coil wattage included - Coil Enclosure: Watertight with Class F coil insulation - Environmental Rating: IP65-rated; suitable for environments with dust and water exposure per IP65 - Mounting Orientation: Vertical installation recommended - Electrical Connection: 1/2 inch conduit hub - Connection Type: NPTF inlet and outlet threads with 1/2 inch nominal pipe size - Dimensions: Overall height 3-27/32 in, length 2-5/16 in, width 2-3/4 in - Includes coil and sealing components - Certified to CSA and UL standards
