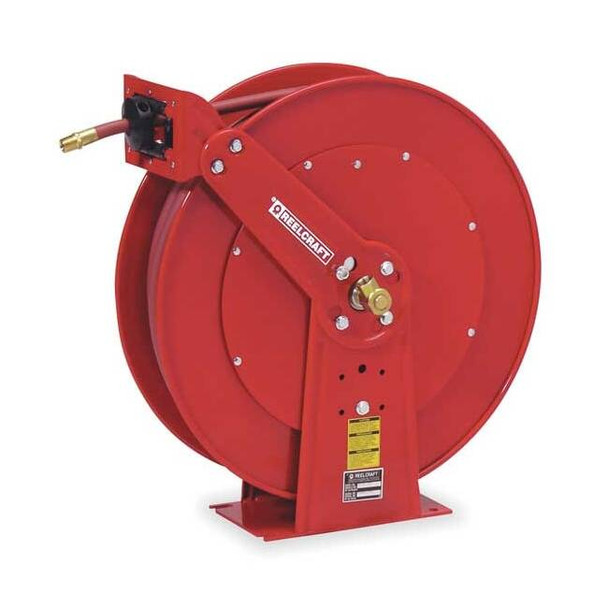

Reelcraft D83075 OLP

The REELCRAFT D83075 OLP is a spring return hose reel for air and water service that includes a 3/4 in. I.D. x 75 ft. PVC hose. It uses a stationary dual pedestal steel frame and can be mounted to wall, floor, ceiling, bench, or truck surfaces. The reel has a 3/4 in. female NPT inlet with a reversible left- or right-side connection option, a 3/4 in. outlet, and is rated for low-pressure applications up to 250 psi with an operating temperature range of 32 to 150 degrees F. Key Features: Spring return drive: Retracts the hose automatically after use. Included hose: Supplied with a red 3/4 in. x 75 ft. PVC hose for air or water service. Mounting options: Can be installed on wall, floor, ceiling, bench, or truck mounts. Dual pedestal construction: Steel pedestal design with double guide arm for supported hose handling. Ball bearings: Permanently lubricated, sealed ball bearings support smooth reel rotation. Powder-coated steel reel: Carbon steel housing and structural steel components with a corrosion- powder-coated finish. Connection size: 3/4 in. NPT inlet and outlet fittings; hose ends are 3/4 in. male NPT brass fittings. Pressure and temperature: Maximum operating pressure of 250 psi and maximum operating temperature of 150 degrees F. Adjustable guide arm: Guide arm can be positioned in 4 different locations. Included components: Comes with hose, hose stop, and bumper. Overall size: 24 in. L x 13 in. W x 25 3/8 in. H; reel weight is 102 lb. Open reel design: Non-enclosed reel allows direct access to the spool and hose.
