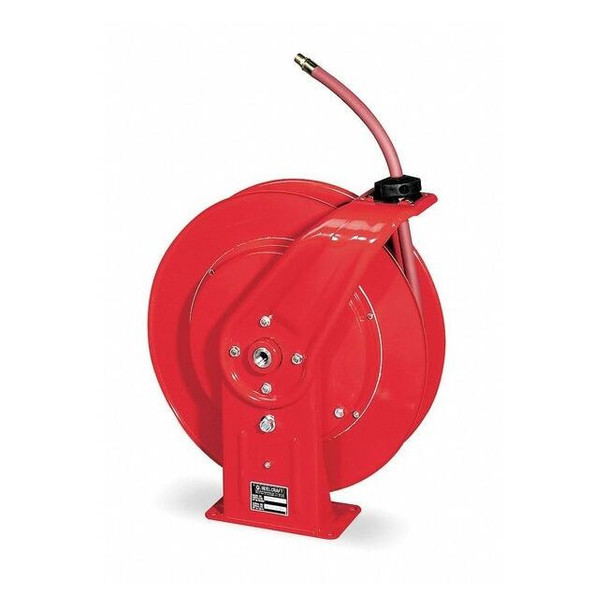

Reelcraft 7925 OLP

The REELCRAFT 7925 OLP is a spring return hose reel for air and water service, supplied with a 25 ft x 3/4 in I.D. PVC hose. It has a stationary steel reel with a powder-coated finish and an open design for mounting on a wall, ceiling, floor, bench, or truck. The inlet hose is routed through the base to reduce stress on the swivel, and the guide arm can be positioned in seven locations to suit different mounting orientations. Key Features of the REELCRAFT 7925 OLP Spring Return Hose Reel: Application: Designed for air and water service. Spring return drive: Retracts the hose onto the reel. Included hose: Comes with a 25 ft, 3/4 in I.D. red PVC hose. Pressure and temperature: Rated for up to 250 psi and 150 degrees F, with a minimum operating temperature of 32 degrees F. Fittings: 3/4 in NPT connections with brass male hose ends and a 3/4 in FNPT reel inlet. Construction: Base plate, upright, and guide arm are made from 11 gauge steel; spool is 16 gauge steel. Finish: Powder-coated steel components help resist corrosion. Guide arm: Single guide arm adjusts to seven positions. Latch: Spring-loaded locking latch holds the hose at the selected length. Bearings: Permanently lubricated bearing construction. Mounting: Can be mounted to wall, ceiling, floor, bench, or truck; base has 4 mounting holes with 1/2 in diameter. Included accessories: Includes hose, bumper, and hose stop. Overall size: 19 3/4 in L x 7 in W x 20 1/4 in H; weight is 47 lb.
