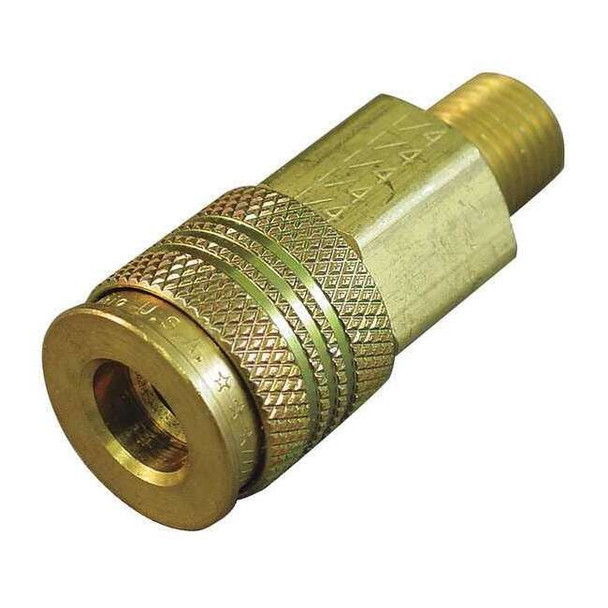

Hansen Quick Connect,Socket,1-4" Body,1-4"-18 B23AS25M

The HANSEN - B23AS25M is a hose coupling for push-to-connect connection and disconnection without tools. It supports applications in construction, air tools, and general pneumatics. Constructed from brass with a zinc-plated finish, this coupling features a male hose fitting with a 1/4 in size and an NPT connection type. It includes a poppet valve and utilizes a push-to-connect locking mechanism, provides a sealed connection for air or fluid lines when used with compatible couplings and within the specified pressure and temperature ranges. The coupling is compatible with AR0210, Industrial Interchange, and Tru-Flate systems. Key Features: - Material: brass with zinc-plated finish. - Connection type: 1/4 in male NPT thread with a 1/4 in coupling size. - Coupling component: Socket with push-to-connect locking mechanism. - Includes an integrated poppet valve to control flow. - Maximum flow rate: 792 L/min (when used under conditions that meet the specified operating parameters). - Maximum working pressure: 150 psi at 70°F. - Operating temperature range: -40°F to 250°F. - Seal material: Nitrile. - Overall length: 2.25 inches; maximum outside diameter: 15/16 inch. - Compatible with AR0210, Industrial Interchange, and Tru-Flate couplings.
