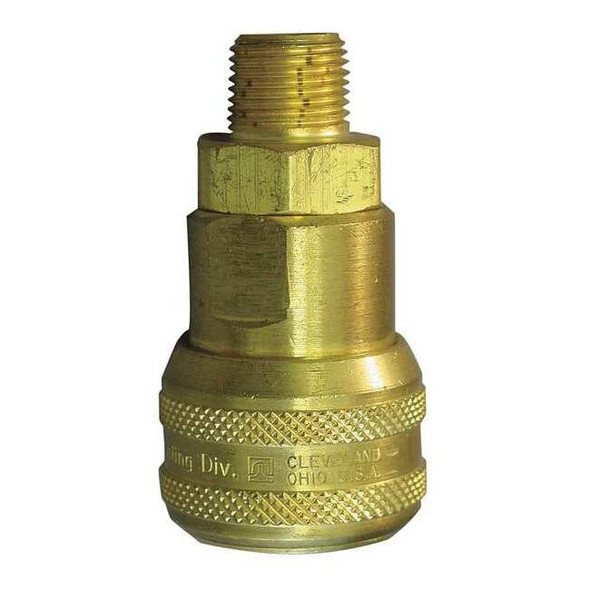

Hansen Coupler Body,(M)NPT,1-4,Brass 1100

The HANSEN - 1100 is a quick connect hose coupling supports tool-free connection and disconnection of a hose to another hose or equipment. is compatible with air-tool and general pneumatics hose applications. This coupling supports fluid or air lines with a sealed connection; seal type/material: nitrile, configured for quick coupling and uncoupling operations. The coupling uses an industrial interchange standard and is equipped with a sleeve locking mechanism for attachment. Key Features: - Material: Brass body with a brass finish. - Connection Type: Male NPT thread with a size of 1/4" -18 and hose fitting size of 1/4 in. - Coupling Component: Socket type with a 1/4 in coupling size. - Includes valve: Yes, with a poppet valve type integrated into the design. - Seal Material: Nitrile for pressure sealing. - Maximum flow rate of 679 liters per minute (lpm). - Rated maximum working pressure: 2,000 psi at 70°F. - Maximum outside diameter: 1 in; overall length: 2 3/16 in. - Temperature operating range from -40°F to 250°F.
