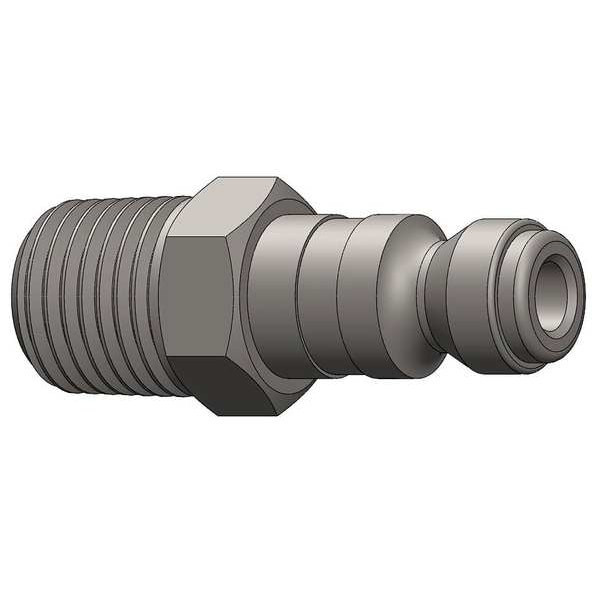

Dixon Male to Automotive Plug,(M)NPT,3-8,Steel J3M2

The DIXON - J3M2 is a quick connect hose coupling for connection and disconnection without tools. It is compatible with equipment using the stated Tru-Flate-Automotive standard and specified thread/seal interfaces. The coupling features a sleeve locking mechanism and is constructed of steel with a zinc-plated finish for surface treatment. It does not include a valve and provides a pressure-sealed connection using a nitrile O-ring for sealing at the specified pressure. It is rated for maximum working pressure of 500 psi at 70°F and has a rated flow rate of 1,642.37 L/min (maximum, under specified conditions). Key Features: - Coupling size and body size: 3/8 in nominal diameter. - Hose fitting size: 1/4 in with male hose fitting gender. - Connection interface uses NPT thread, 1/4"-18 thread size - Seal material: Nitrile O-ring for sealing at the specified pressure using the nitrile O-ring. - Maximum outside diameter: 13/16 in. - Overall length: 1.81 in (1 13/16 in). - Temperature range: is rated for operation in the -40°F to 250°F temperature range - Interchange type: Tru-Flate-Automotive standard. - Barbed end: No; designed to connect via threaded NPT fitting rather than barbed hose tail.
