Dixon Male to Automotive Plug,(M)NPT,1-4,Steel J2M3

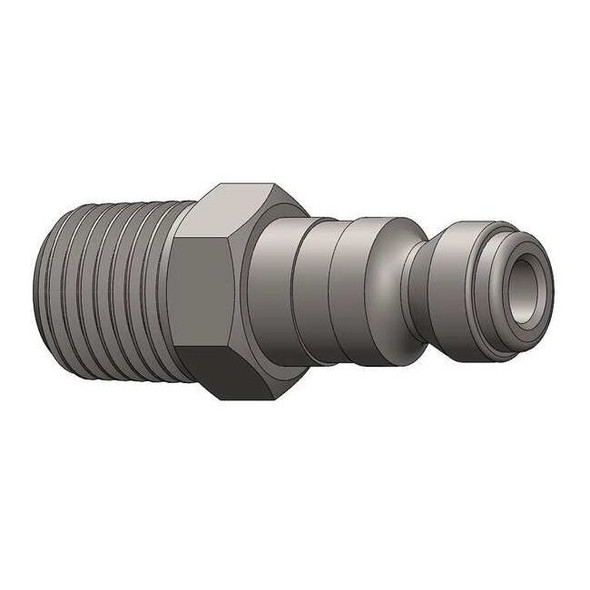

The DIXON - J2M3 is a quick connect hose coupling for on-end attachment to hoses or pipes; provides tool-free connection/disconnection when used with compatible couplers. It is constructed from steel with a zinc-plated finish and features a 1/4 inch NPT male connection. The coupling operates using a sleeve locking mechanism and is compatible with automotive style fittings, following the Tru-Flate-Automotive interchange standard. It is intended for use with hoses having a 3/8 inch inner diameter and matching hose fitting size. It is rated for fluid or air flow up to 736.23 liters per minute and maximum working pressure: 500 psi at 70°F. The nitrile seal O-ring is rated for operation within -40°F to 250°F. Key Features: - Material: Steel body with zinc-plated finish for surface treatment. - Connection Type: 1/4 inch NPT male threaded end. - Locking Method: Sleeve locking connection for secure mating when connected to compatible couplers. - Coupling Type: Plug (male half) for insertion into a compatible coupler per Tru-Flate-Automotive interchange standard. - Hose Compatibility: Compatible with 3/8 inch inner diameter hoses with matching hose fitting size. - Interchange Standard: Tru-Flate-Automotive compatible fittings. - Maximum Flow Rate: 736.23 liters per minute. - Maximum Working Pressure: Maximum working pressure rating of 500 psi at 70°F. - Seal Material: Nitrile O-ring for sealing at rated pressure and temperature. - Operating Temperature Range: -40°F to 250°F. - Overall Length: 1.69 inches. - Maximum Outside Diameter: 0.813 inches.
