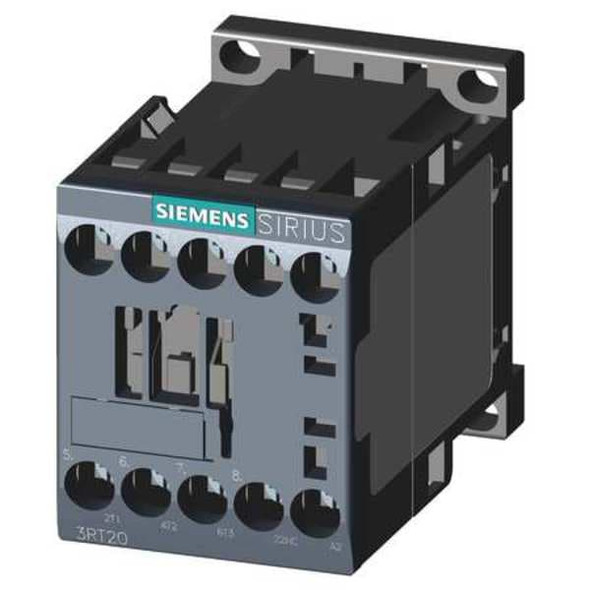

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20171AK62

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for use within specified electrical parameters. It uses a coil voltage of 110–120 V AC and includes an auxiliary contact configured as 1NC. This IEC-style device has dimensions suitable for control-panel applications and is supplied without an enclosure. - Action: Non-Reversing - Reversing: No - Poles: 3 - Auxiliary Contact Configuration: 1NC - Auxiliary Contact Form: 1NC - Coil Voltage: 110–120 V AC - Frame Size: S00 - Frame / Series / Code: SIRIUS 3RT20 - Mounting Style: DIN Rail, Surface - Electrical Connection: Screws - Terminal Connection Type: Screw - IP Rating: IP20 - Enclosure: No Enclosure - Maximum Voltage Rating: 690 V AC - Full Load Amps (Inductive/Resistive): 12 A / 22 A - Phase: Three - Frequency: 50/60 Hz - Mechanical Durability: 30,000,000 cycles - Includes Auxiliary Contacts: Yes - Number of Normally Open Main Contacts: 3 - Overall Depth: 3.3 in; Overall Height: 2.6 in; Overall Width: 2.5 in
