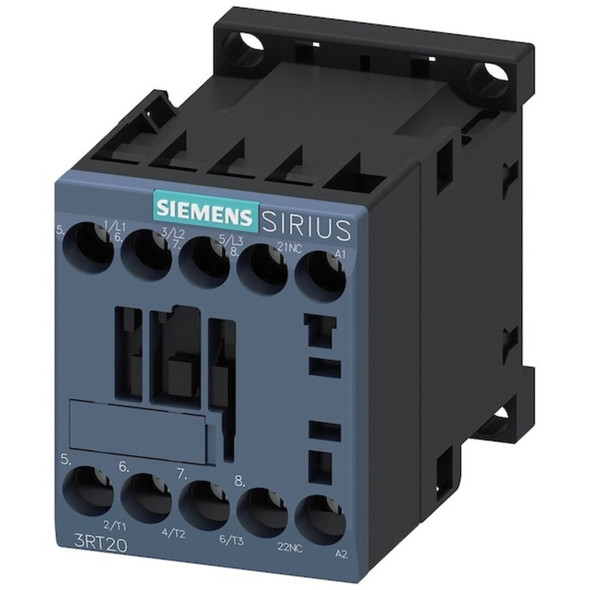

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20161AK62

The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switching device rated for operation within the specified IEC standards. It operates with a coil voltage of 110–120 V AC as specified and is part of the SIRIUS 3RT20 family (frame size S00). The unit includes one auxiliary contact (1NC) and employs screw terminals for wiring. - Action: Non-Reversing - Poles: 3 - Main Contacts: 3 normally open - Auxiliary Contacts: 1 (1NC) - Coil Voltage: 110–120 V AC - Frequency: 50/60 Hz - Phase: Three - Terminal Connection: Screw - Enclosure: No Enclosure - IP Rating: IP20 - Frame Size / Series: S00 / SIRIUS 3RT20 - Mounting Style: DIN Rail, Surface - Mounting Position: Vertical - Overall Dimensions: Depth 3.15 in; Height 2.40 in; Width 1.95 in - Mounting Hole Diameter: 0.20 in - Mounting Hole Distances: Height 1.97 in; Width 1.38 in - Operating Temperature: -13 °F to 140 °F - Maximum Voltage Rating: 690 V AC - Max Operating Watts: 4 kW (400 V AC-3); 13 kW (400 V AC-1) - Full Load Amps: Inductive 9 A; Resistive 22 A - Watts Loss: 0.3 W (current dependent); 4.4 W (current independent) - Mechanical Durability: 30,000,000 cycles - Standards: REACH Art 33, WEEE (2012/19/EU) - Reversing: No
