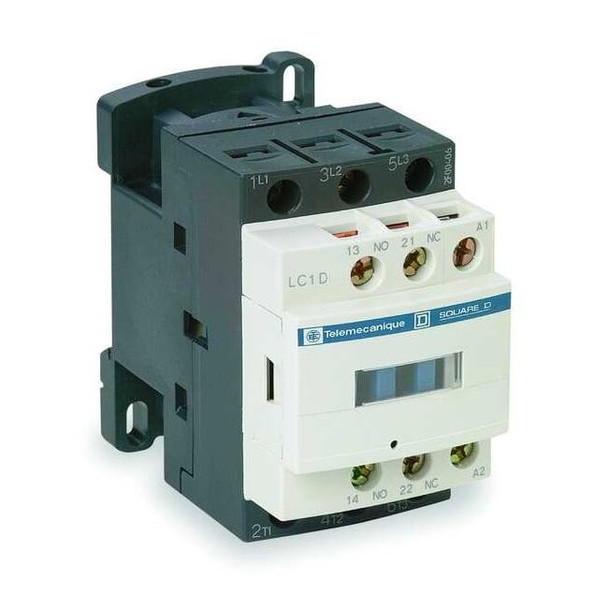

IEC Magnetic Contactor, 1NC-1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp LC1D32LE7

The item is an IEC Magnetic Contactor designed to control power circuits in motor control and resistive-load applications. It is a 3-pole, non-reversing device with a 208 V AC coil, part of Schneider Electric’s TeSys line (TeSys Deca). It uses screw clamp terminals and includes two auxiliary contacts configured as 1NO/1NC. This unit is rated for IEC operation within specified environmental conditions and includes a protective cover. Key features - Action: Non-Reversing - Application: Motor Control, Resistive Load - Coil Voltage: 208 V AC - Phase / Poles: Three-phase, 3 poles - Auxiliary Contacts: 2 total (1NO/1NC) - Main Contacts: 3 normally open - Contactor Style / Frame: IEC / TeSys Deca - Rated Voltage / Insulation: 690 V AC; 600/690 V insulation - Frequency: 50/60 Hz - Enclosure / Protection: No Enclosure; IP20; Includes Protective Cover - Mounting / Terminals: DIN Rail, Plate; Screw Clamp terminals - Net Weight / Dimensions: 0.375 kg; 3.62 in depth, 1.77 in width, 3.35 in height - Standards: UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1 (and others)
