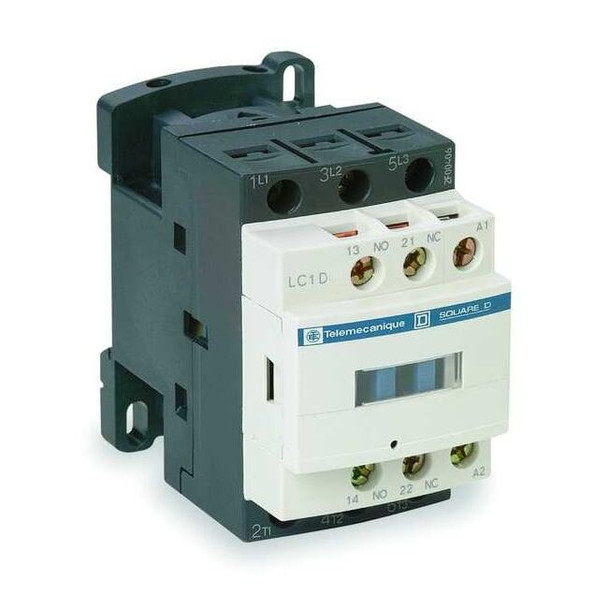

IEC Magnetic Contactor, 1NC-1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp LC1D09LE7

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, mains-operated switch rated for use in motor control and resistive-load applications within specified parameters. It uses a 208 V AC coil and includes auxiliary contacts (1NO/1NC) and screw clamp terminals as specified. The unit is part of the TeSys line (TeSys Deca) and conforms to IEC standards; enclosure options are available separately. - Coil voltage: 208 V AC; Coil form: 208 V AC - Action: Non-Reversing; Reversing: No - Poles/Phase: 3 poles; Three-phase - Auxiliary contacts: 2 total (1NO/1NC); Main contacts: 3 NO - Auxiliary contact configuration: 1NO/1NC - Electrical connection: Screw Clamp Terminals - Enclosure: IP20; enclosure options are available separately - Series: TeSys Deca; Frame/Code: TeSys - Maximum voltage: rated for operation up to 690 V AC within specified conditions - Rated currents: 9 A (Inductive), 20 A (Resistive) under specified conditions - Rated making capacity: 250 A @ 440 V (Power Circuit); 140 A (Signalling Circuits) rated for making capacity up to these values within the defined testing standards - Mechanical durability: tested for approximately 15 million cycles under standard test conditions; Electrical durability: 2,000,000 cycles (Power Circuit), 600,000 cycles (Signalling Circuit) under standard test conditions; actual lifespan may vary based on usage - Inrush/Hold: specifications provided are typical operational parameters under standard test conditions - Dimensions and weight: Width 1.77 in; Overall Depth 3.39 in; Overall Height 3.03 in; Net weight 0.32 kg - Protection and mounting: IP20; enclosure options are available separately; includes protective cover; mounts on plate or DIN rail - Additional specs: Series and standards references; Operating frequency 50/60 Hz
