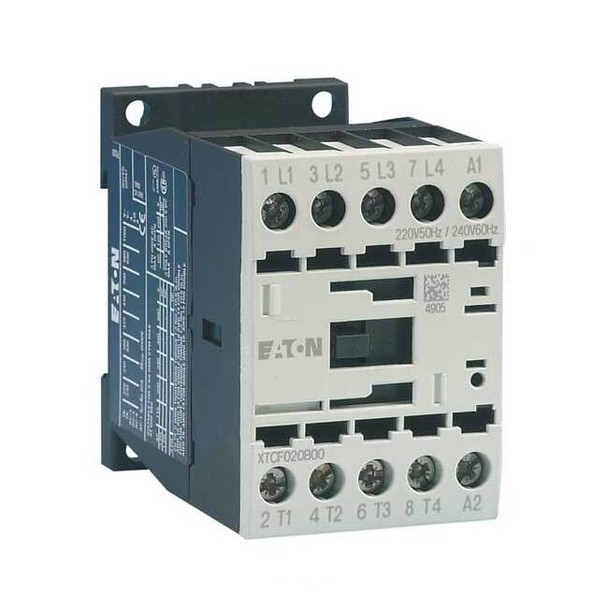

Eaton XTCF020B00A

The Eaton XT IEC contactor is an IEC magnetic contactor used to switch power circuits. It is a 4-pole, non-reversing device with a 120V AC coil and screw terminals, and it does not include auxiliary contacts. This XT series (Frame B) unit is rated within the specified voltage and current ranges, with IP20 protection and no enclosure. It supports mounting on DIN rail or panel, and dimensions are approximately 3 in W x 2 in H x 2.75 in D, with a mechanical durability of 10,000,000 cycles. - Action: Non-Reversing - Poles: 4 - Amperage Rating: 20A - Coil Voltage: 120V AC - Frequency: 50/60 Hz - Maximum Voltage Rating: 690V AC - Electrical Connection: Screw Terminals - Mounting Style: DIN Rail, Panel - Frame Size / Series: Frame B / XT - Enclosure: No Enclosure - IP Rating: IP20 - Includes Auxiliary Contacts: No - Contact Configuration: 0 NO, 0 NC - Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS - Mechanical Operating Durability: 10000000 - Overall Dimensions: Dimensions are approximately 3 in W x 2 in H x 2.75 in D
