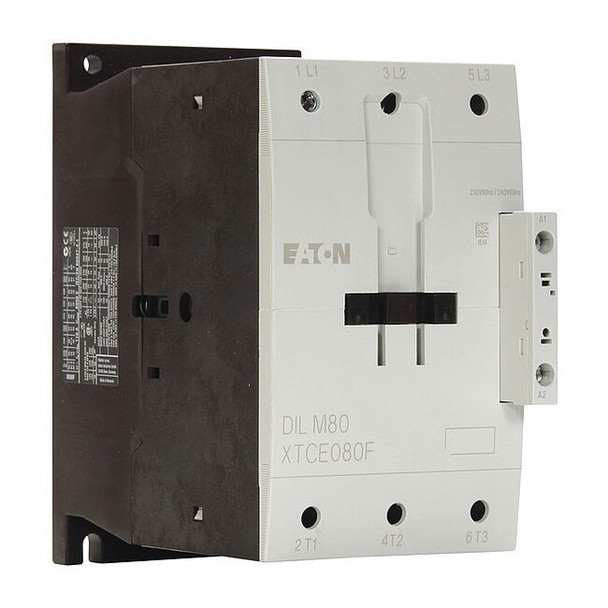

Eaton XTCE080F00A

The Eaton XT IEC contactor is an IEC magnetic contactor intended for switching power circuits in control panels. It is a 3-pole, non-reversing device with a 120 V AC coil, screw terminals, and includes an embedded surge suppressor; does not include auxiliary contacts. It is part of the XT series, frame size F, rated for operation within the specified voltage range (up to 690 V AC). - Poles: 3 - Action: Non-Reversing - Coil Voltage: 120 V AC - Amperage Rating: Full Load Amps – Inductive 80 A; Resistive 110 A - Auxiliary Contacts: No - Frame/Series: XT; Frame F - Electrical Connection: Screw - Maximum Voltage Rating: 690 V AC - IP Rating: IP20 - Embedded Surge Suppressor: Yes - Mounting Style: DIN Rail, Panel - Enclosure: No Enclosure - Response Times: Response times are specified as less than the listed durations under standard test conditions. - Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947 - Compliance: CE Marked; RoHS - Mechanical Durability: 10,000,000 cycles - Electrical Operating Durability: 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie)
