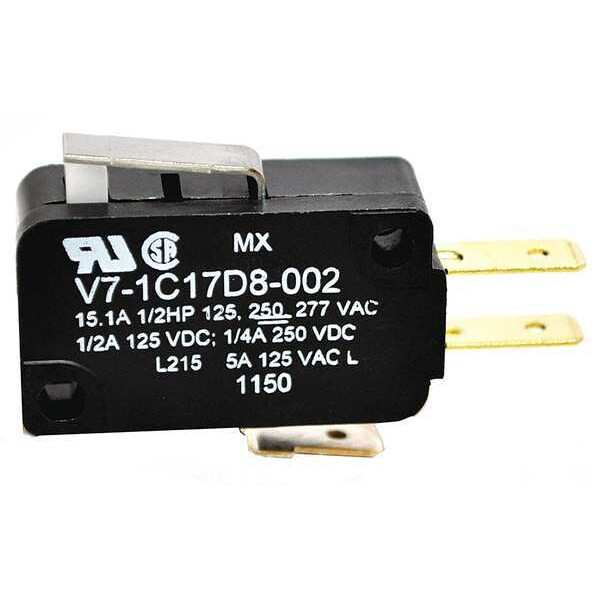

Snap Action Switch - SPDT, Short Lever, 15.1A, Quick Connect Terminals V7-1C17D8-002

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a short lever actuator and is suitable for use in on/off limit or presence/absence sensing applications, as specified by the manufacturer. Housed in a PCT polyester body, this SPDT switch is rated for operation within the specified parameters with quick connect terminals designed with quick connect terminals to facilitate installation. Key Features: - Contact Form: Single Pole Double Throw (SPDT), 1NO/1NC - Actuator Type: Short straight roller lever, 0.87" length - Electrical Ratings: AC—15.1A at 125–277V; DC—0.5A at 125V, 0.25A at 250V - Operating Force: Maximum of 5.5 ozf (1.57N) - Travel Parameters: Pretravel max 0.06", overtravel 0.035", differential travel max 0.015" - Housing Material: Polyester - Mounting Dimensions: Centers at 0.41 x 0.87"; mounting hole diameter of 1/8" - Temperature Range: -40°F to +185°F (-40°C to +85°C) - Terminal Type & Size: Quick connect spade tab, 3/16" wide x .020" thick - Certifications: CSA, ENEC, RoHS, UL Listed
