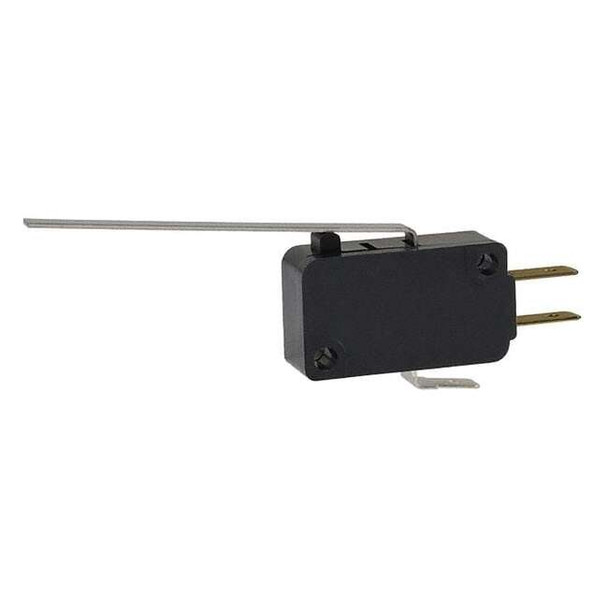

Snap Action Switch - V7 Series, SPDT, Long Lever Roller, 15.1A, Miniature V7-1C17D8-048

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a compact housing. This switch features a long lever actuator with roller, suitable for use in on/off limit detection and presence/absence sensing applications. The SPDT (Single Pole Double Throw) contact configuration allows for both normally open and normally closed circuit operation. Key Features: - AC Contact Rating: 15.1 A at 125–277 V; DC Contact Rating: 0.5 A at 125 V, 0.25 A at 250 V - Actuator Type: Long straight lever with roller, length of 2.34" - Body Dimensions: Depth 0.4", Height 0.63", Width 1.14" - Housing Material: PCT polyester - Electrical Connection: Quick connect terminals (spade tab, 0.188" wide x 0.020" thick) - Mounting Hole Distance: Center-to-center spacing of 0.87"; mounting hole diameter of 1/8" - Operating Force: Maximum of 1.59 ozf; Release force of 0.18 ozf - Travel Parameters: Pretravel max of 0.085", overtravel of up to 0.165", differential travel max of 0.06" - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C) - Standards Compliance: CSA, ENEC, RoHS, UL Listed
