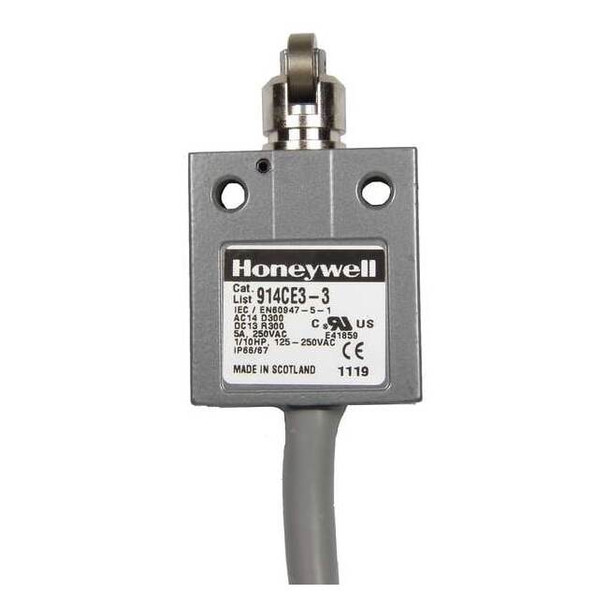

Miniature Limit Switch - 914CE, Cross Roller Plunger, SPDT, IP68 Rated 914CE3-3

The Honeywell 914CE Series Limit Switch is a compact, general-purpose switch featuring a cross roller plunger actuator located at the top of its miniature zinc die-cast body. Suitable for applications within North American markets, this limit switch incorporates fluorocarbon diaphragm sealing and an epoxy-encapsulated cable connection with materials and construction rated for exposure to challenging environmental factors. It meets multiple NEMA enclosure ratings (1, 2, 3, 3R, 4, 6, 6P, and 13) as well as IP66/IP67/IP68 ingress protection standards. Key features: - Contact rating: SPDT (1NC/1NO), rated for up to 5A at 240V AC - Actuator style: Cross roller plunger; actuator length of 1.12 in - Body dimensions: Height – 1.73 in; Width – 1.58 in; Depth – 0.63 in - Mounting: Surface mount with two horizontal holes (0.20 in diameter), spaced at 0.98 in center-to-center - Electrical connection: Integrated with a three-foot cable - Mechanical travel: Pretravel of 0.04 in ±0.02 in; overtravel minimum of 0.118 in; differential travel of 0.004 in - Operating force/torque: Maximum operating torque of up to 2.65 in-lb; release force up to .99 lb max - Temperature range: Operates from +32°F to +221°F - Standards met: CE, CSA, IEC947‑5‑1, EN60947‑5‑1, UL
