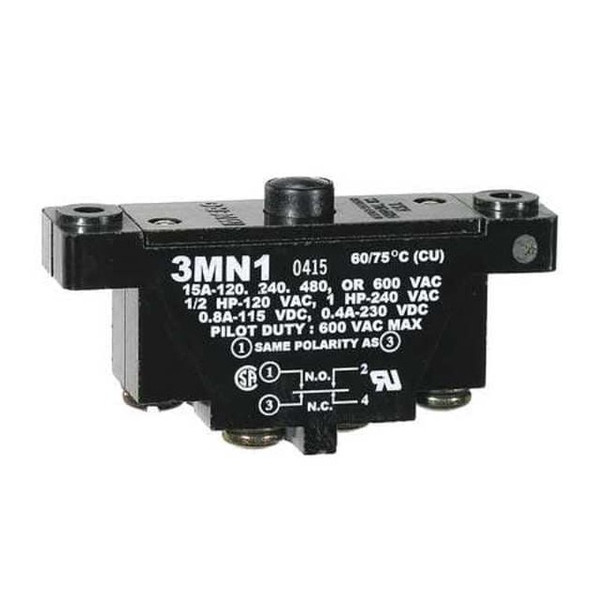

Snap Action Switch - DPDT, Pin Plunger, 15A, Phenolic Body, 3MN Series 3MN1

The Honeywell 3MN Series Snap Action Switch is a pin plunger actuator switch intended for applications including limit or control mechanisms on compatible equipment as specified by the manufacturer. This double pole double throw (DPDT) switch features a phenolic body and is suitable for gang mounting configurations according to product specifications. Key features include: - AC Contact Rating: 15 A at 600 V - DC Contact Rating: 0.8 A at 115 V - Actuator Type: Pin Plunger, 2.00" length - Contact Form: DPDT (1NO/1NC) - Operating Force Range: 12 ozf minimum to 20 ozf maximum - Differential Travel: 0.015 in minimum to 0.025 in maximum - Pretravel: 0.06 in; Overtravel: 0.08 in; Release Force: 6 ozf - Body Dimensions: Depth—0.7 in, Height—1 in, Width—2 in - Mounting Dimension: Center holes spaced at 2.13" - Electrical Connection and Terminal Type: Screw terminals - Housing Material: General purpose phenolic - Operating Temperature Range: -67°F to +185°F - Standards Compliance: CSA and UL Listed
