Sharpe 4371000910

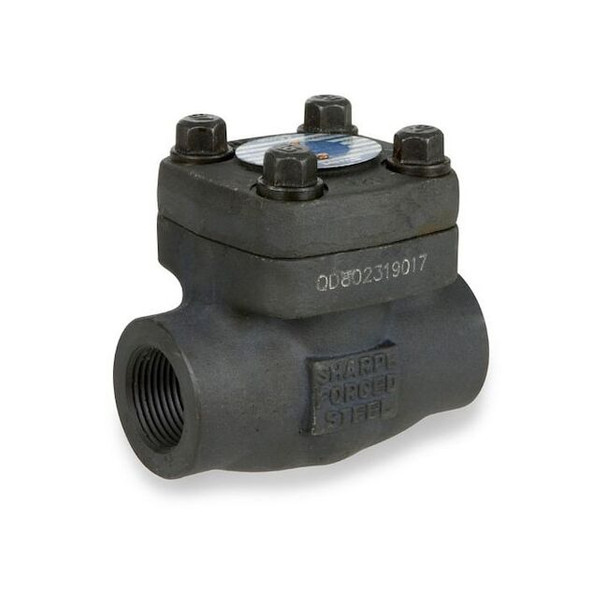

SHARPE 4371000910 is a 3/4 in inline swing check valve configured for one-direction flow and closure in response to reverse flow. It is for compatible process piping applications involving corrosive chemicals or corrosive, flammable, or toxic media. The valve features a carbon steel body, a 316 stainless steel swing mechanism and spring, and a threaded x socket weld connection configuration for horizontal or vertical mounting. Key Features: Nominal valve size: 3/4 in Mechanism and body design: Inline swing Flow design: Single Body material: Carbon steel Check mechanism material: 316 stainless steel Spring material: 316 stainless steel Seal material: 304 stainless steel, graphite Seat material: Metal Connection type: Threaded x socket weld Side 1 connection: 3/4 in female socket Side 2 connection: 3/4 in female NPSM Maximum operating pressure: 1,690 psi Maximum operating temperature: 400 degrees F Cv: 10 Mounting orientation: Horizontal, vertical Overall length: 3.62 in Cap to inlet center: 1 7/100 in Height - cap to inlet center: 1 1/16 in Standards: API 602, NACE MR0175 Valve series: 2483SC
