Sharpe 4371000560

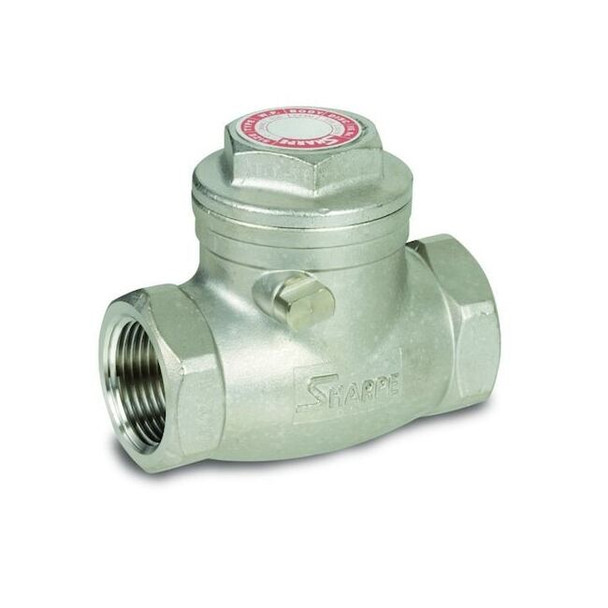

SHARPE 4371000560 is an inline swing check valve with an inline swing check design for one-direction flow applications. It features a 316 stainless steel body, a 316 stainless steel check mechanism, a PTFE seal, and a metal seat. This 2-way valve is rated for steam service and is specified for process piping applications involving compatible corrosive, flammable, or toxic media within the valve’s listed materials and ratings. Key Features: Nominal valve size: 1 1/2 in Pipe or tube size: 1 1/2 in Connection type: Threaded x Threaded Side 1 connection: Female NPSM Side 2 connection: Female NPSM Mechanism and body design: Inline swing Body material: 316 stainless steel Check mechanism material: 316 stainless steel Seal material: PTFE Seat material: Metal Maximum steam pressure: 125 psi WSP Maximum operating temperature: 350 degrees F Mounting orientation: Horizontal or vertical Overall length: 4.68 in Cap to inlet center: 2.89 in Height, cap to inlet center: 2 7/8 in Valve ways: 2-way Valve series: 2027 Standards: MSS SP-110
