Ham-Let H-400HP-SS-L-1-2-25PSI

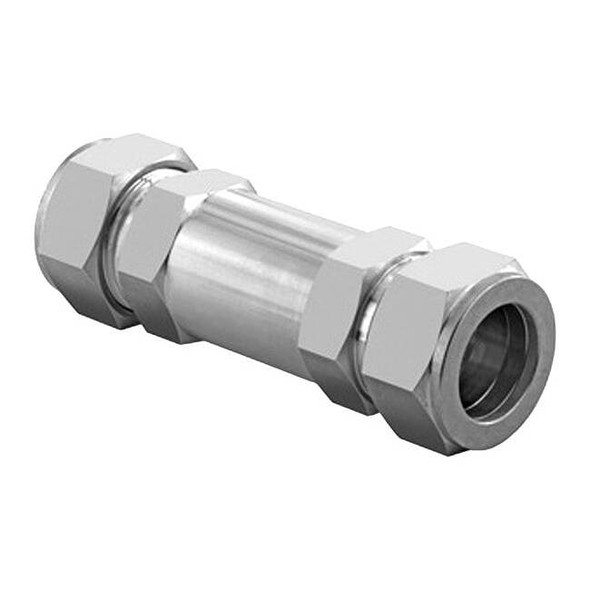

HAM-LET H-400HP-SS-L-1/2-25PSI is an instrumentation check valve designed for one-way flow control in small-bore tubing lines. This inline spring valve uses a poppet check mechanism to help prevent reverse flow in systems with media compatible with 316 stainless steel, stainless steel, and FKM wetted materials. It features 1/2 in Let-Lok x Let-Lok connections and a 25 psi cracking pressure for instrumentation and process applications where a check valve is specified. Key Features: 316 stainless steel body with stainless steel seat 304 stainless steel check mechanism and spring Poppet-style check mechanism with inline spring body design 1/2 in nominal valve size with 1/2 in side 1 and side 2 connections Let-Lok x Let-Lok connection type Cv: 1.8 Maximum operating pressure: 6,000 psi Maximum water pressure: 6,000 psi at -10 degrees F to 100 degrees F Operating temperature range: -10 degrees F to 400 degrees F Mounting orientation: horizontal or vertical Inline body style; 2-way valve Seal material: FKM Overall length: 2.96 in; hex size: 1 in Standards: C.R.N 0C16552.2
