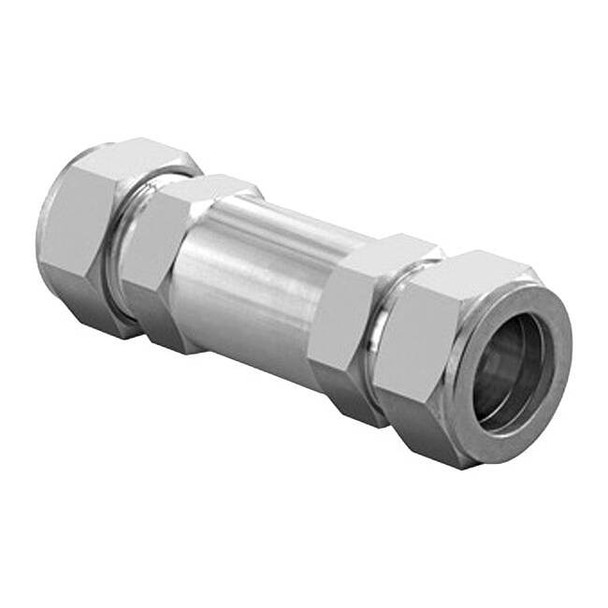

Ham-Let H-400-SS-L-1-2-1-3PSI

HAM-LET H-400-SS-L-1/2-1/3PSI is an instrumentation check valve designed for one-way flow control in small-bore tubing lines. It uses an inline spring and poppet mechanism to help prevent reverse flow in compatible chemical, gas, oil, and water instrumentation lines. This 1/2 in valve features Let-Lok connections on both ends, a maximum operating pressure of 3,000 psi, and a cracking pressure of 0.33 psi. Key Features: Instrumentation check valve with 2-way inline body design 1/2 in Let-Lok x Let-Lok connections 316 stainless steel body, seat, and check mechanism 302 stainless steel spring and FKM seal Poppet check mechanism Cv flow coefficient: 1.68 Maximum operating pressure: 3,000 psi Maximum water pressure: 3,000 psi at -10 degrees F to 100 degrees F Temperature range: -10 degrees F to 375 degrees F Horizontal or vertical mounting orientation Nominal valve size: 1/2 in Overall length: 3.03 in Hex size: 15/16 in C.R.N. 0C16552.2
