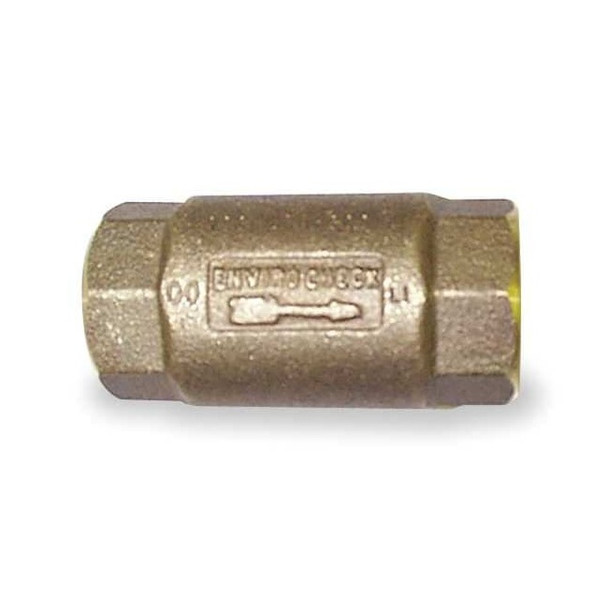

Campbell 1-1-4" FNPT Lead Free Brass Spring Check Valve 4032E

CAMPBELL 4032E is a 1-1/4 in. inline spring check valve with FNPT x FNPT female threaded connections. This lead-free brass valve is designed for general-purpose water service and can be mounted horizontally or vertically. It is configured for one-direction flow applications with a spring-loaded poppet check mechanism. Key Features: Valve type: Spring check valve with inline body design Body material: Lead-free brass Connections: 1-1/4 in. FNPT x FNPT, female on both ends Check mechanism: Poppet with 302 stainless steel mechanism and spring Seal and seat materials: Buna-N seal, bronze seat, metal seal Cracking pressure: 0.5 psi Flow rating: 23 gpm Cv: 29 Maximum pressure: 400 psi Operating temperature range: 35 degrees F to 180 degrees F Mounting orientation: Horizontal or vertical Certification: NSF 61 Standards: ANSI B1.20.1 Overall size: 3.75 in. L x 2-1/4 in. H x 2-1/4 in. W
