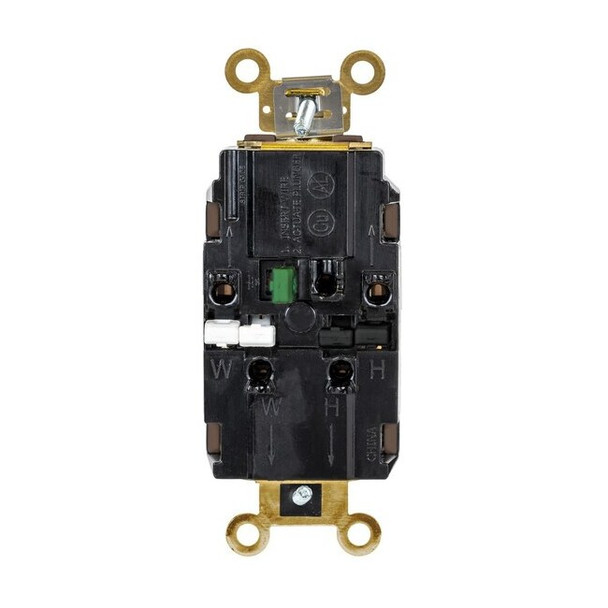

Hubbell Wiring Device-Kellems HBL5362STTR

The HUBBELL Duplex Straight Blade Receptacle is a grounded, intended for use in indoor, dry locations electrical outlet designed for indoor, dry locations. It features the EdgeConnectâ„¢ screwless termination system, allowing for tool-free wire installation by simply inserting the wire and pressing down the plunger. This receptacle accommodates 2 outlets in a single gang configuration and supports back-wired push-in connections suitable for copper conductors ranging from 14 AWG to 10 AWG.Key Features of the HUBBELL Duplex Straight Blade Receptacle: Current Rating: Rated for up to 20 A at 125V ACNEMA Configuration: 5-20R duplex type with polarized designWire Connection Type: Push-in, back-wired screwless termination that features a system enabling wire installation without toolsContact Material: Copper alloy contacts with triple and double wipe designTamper : Incorporates features intended to reduce insertion of foreign objectsHousing Material: housing; brown colorMounting Type: Surface mount; includes mounting hardwareStandards Compliance: CSA Certified (22.2 No 42 File 285), Federal Specification W-C-596, NEMA WD-6, UL Listed (UL 498 File No E2186)Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
