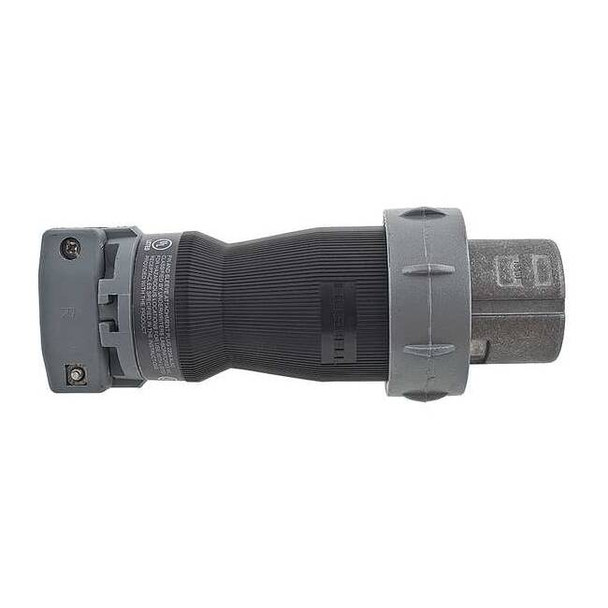

Hubbell Wiring Device-Kellems HBL5100PS1W

The HUBBELL Pin and Sleeve Plug is a 100A, 600VAC/250VDC-rated electrical connector suitable for industrial applications. Featuring a combination of metallic shrouding and a non-metallic Valox 357 housing with an aluminum shroud, this plug is rated as watertight (UL Type 4X). It is compatible with the Insulgrip series and supports three-phase power connections using four poles and five wires.Key Features of the HUBBELL Pin & Sleeve Plug: Current/Voltage Rating: Rated for 100A at 600VAC or 250VDCBody Material: Constructed from Valox 357 housing with an aluminum shroudEnvironmental Resistance: Rated UL Type 4X dust-tight/watertight; tested for impact resistanceCable Compatibility: Accepts #4 AWG to #2 AWG wire sizes; cable diameter range from 0.925 in to 1.94 inConnection Type: Connection using pressure terminal screwsGrounding Style: Grounding configuration: Style 1Certifications: CSA Certified (C22.2 No.159), UL Listed (Type 4X), meets UL Standards (1682, UL50, UL1010)Sleeve Contacts: All-brass sleeve contacts provide reliable electrical connectionOperating Temperature Range: -40°C to +75°C continuous operation without impact (-25°C with impact)Permanently Marked Ratings: Catalog number and rating are visible while in use on device housing
