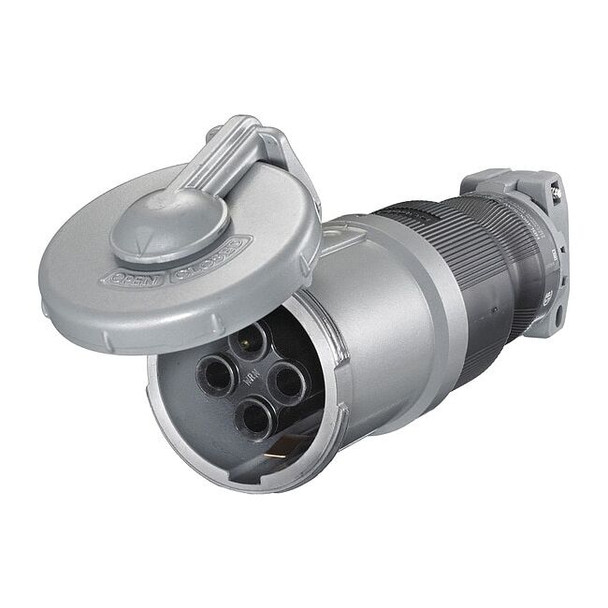

Hubbell Wiring Device-Kellems HBL460CS2W

The HUBBELL Pin and Sleeve Connector is a watertight electrical connector suitable for industrial applications, rated for 60A and up to 600VAC/250VDC. It features a combination of Valox 357 housing and an epoxy painted aluminum shroud, constructed with materials intended to withstand typical industrial conditions. The connector is grounded, supports three-phase power with four wires, and uses screw terminals for wire connection.Key Features of the HUBBELL Pin and Sleeve Connector: Current/Voltage Rating: Rated for 60A at 600VAC/250VDCBody Material: Valox 357 housing with epoxy painted aluminum shroudNEMA Enclosure/IP Rating: NEMA 4X; IP68, IP69K – rated NEMA 4X; IP68, IP69KOperating Temperature Range: -40°C to +75°CCable Compatibility: Accepts cable diameters from 0.5 in to 1.45 in; wire size range from 6 AWG to 4 AWGConnection Orientation: Straight with screw terminal connectionsPole/Wire Configuration: Three poles, four wires (grounded), Style 2 groundingShrouded Design: includes a shrouded design around pin contactsSealing Features: Spring-loaded gasketed cover and neoprene sealing glands designed to support internal containment and sealing functionsResistance Properties: features impact-, moisture-, watertight construction per listed ratings; UL94 V-0 flammability ratingCertifications & Standards: CSA Certified C22.2 No.182.1; UL1682 listed; Type 4X enclosure rating compatible with UL1686 Class I Insulgrip(R) series devices
