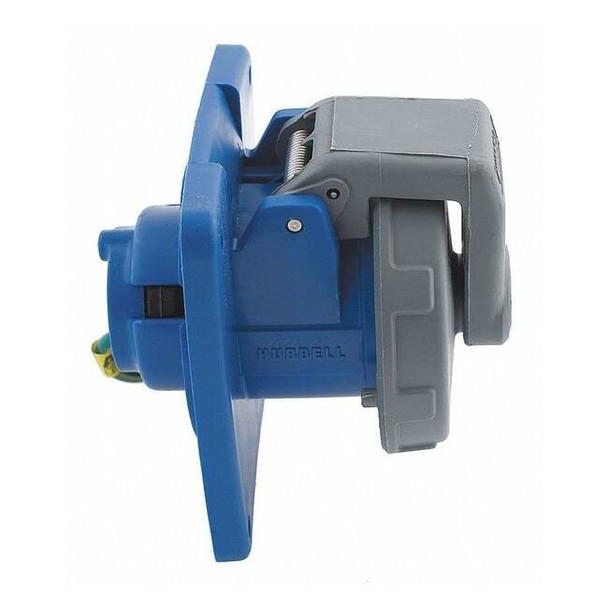

Hubbell Wiring Device-Kellems HBL4100R9W

The HUBBELL IEC Pin and Sleeve Receptacle is a rated IP67 for water ingress protection electrical device intended for industrial applications, rated for 100A and 250V AC. This receptacle features a straight connection orientation with screw terminal wire connections, supporting wire sizes from 8 AWG to 2 AWG. It is constructed with impact- Zytel 101 nylon housing and flange, providing durability in demanding environments. The unit meets IP67 and NEMA 4X enclosure ratings for moisture resistance and protection against dust and water ingress.Key Features of the HUBBELL IEC Pin & Sleeve Receptacle: Current/Voltage Rating: Rated for 100A at 250V AC single phaseBody/Flange Material: Made from Zytel 101 nylon for enhanced impact resistanceCord Size Compatibility: Accepts cord sizes from 3 to 1/0 AWG; supports wire sizes from minimum 8 AWG to maximum 2 AWGOperating Temperature Range: Operating temperature range: -40°C to +75°CEnclosure Ratings: IP67 enclosure rating; NEMA Type 4X enclosureNumber of Poles/Wires: Configured with three poles and four wiresGrounding Style: IEC grounding configuration; grounded designCover Type: Spring-loaded self-closing gasketed cap made of neoprene materialScrew Material: Constructed using corrosion- stainless steel screws (300 series)Resistance Properties: Impact , moisture , rated IP67 for water ingress protection constructionColor Coding Feature: Color coded housing aids in device identification on siteStandards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, IEC standards
