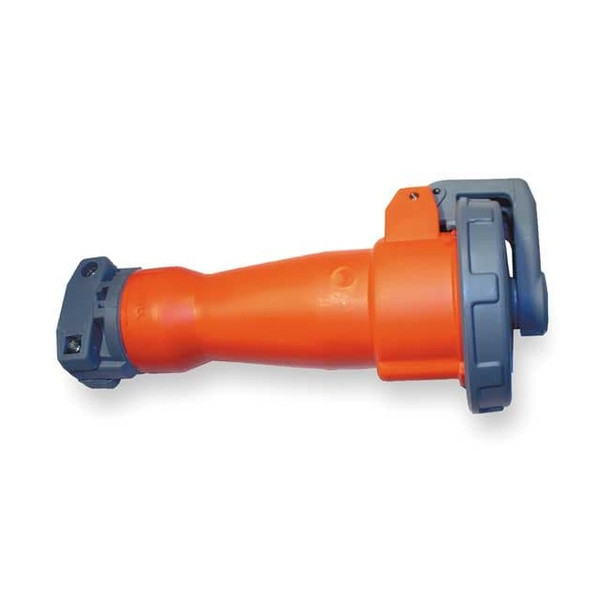

Hubbell Wiring Device-Kellems HBL4100C12W

The HUBBELL IEC Pin and Sleeve Connector is a rated IP68/IP69K for water ingress protection connector suitable for industrial applications, rated for 100A and 125/250V AC. It features an insulated non-metallic housing with color-coded components for easy identification. This connector is grounded, shrouded, and equipped with a self-closing gasketed cover.Key Features of the HUBBELL IEC Pin and Sleeve Connector: Current/Voltage Rating: Rated for 100A at 125/250V AC single phaseWire Accommodation: Accepts wire sizes from 3 AWG up to 1/0 AWG via screw terminalsHousing Material: Constructed from Zytel 801 nylon (PBT)Ingress Protection: IP68/IP69K rating; NEMA Type 4X enclosureTemperature Range: Operates between -40°C to +75°CCable Diameter Compatibility: Supports cable diameters from 1.065 in to 1.94 inPole/Wire Configuration: Features three poles and four wires with IEC grounding styleHorsepower Rating: Rated up to 10 hp as per NEC requirementsStandards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed
