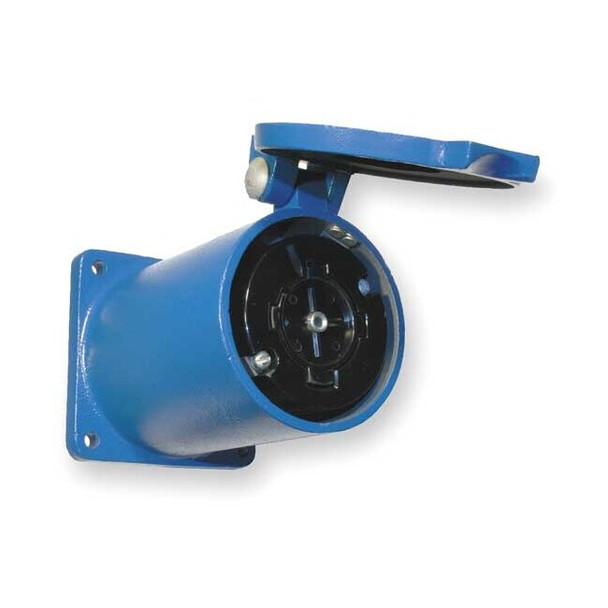

Hubbell Wiring Device-Kellems HBL26520

The HUBBELL 60A Locking Receptacle is an industrial electrical device rated for use in specified environments. This flush-mount, non-NEMA locking receptacle features a four-pole, five-wire configuration and is rated for up to 60 amps at 600V AC. The unit incorporates a cast aluminum base with a nylon housing and includes spring-loaded safety shutters.Key Features of the HUBBELL 60A Locking Receptacle: Amperage/Voltage Rating: Rated for 60 A and 600V AC operationConfiguration: Four poles, five wires; polarized designMaterial Construction: Cast aluminum base with nylon housing; copper alloy contactsMounting Type: Flush mount with screw mounting hardware; rectangular flange shapeCord Grip & Strain Relief: Mechanical cord grips clamp down on conductors for strain reliefSpring-Loaded Safety Shutter: Contains arcing when mating/unmating devices under load and automatically ejects plugBox Terminals & Screws: Stainless steel screwsNEMA Enclosure Rating/IP Rating: NEMA Type 12, 4X enclosure rating; IP20 ingress protection (moisture )Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous useFlammability/Standards Compliance: UL 94 V0 flammability rating; CSA certified and UL listed standards compliance
