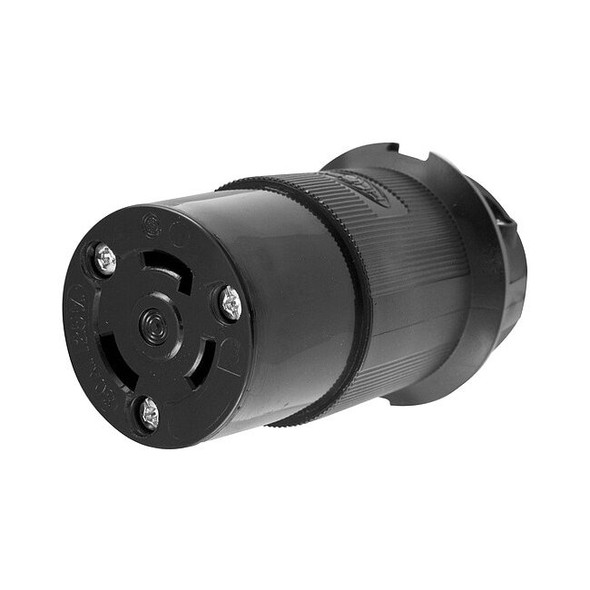

Hubbell Wiring Device-Kellems HBL2613

The HUBBELL 30A Twist-Lock Connector (L5-30R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a two-pole, three-wire configuration rated for 30 amps at 125V AC, with a straight connection orientation and screw terminal wiring style. The body is constructed from nylon; intended for indoor dry locations.Key Features of the HUBBELL 30A Twist-Lock Connector: Cord Grip Design: Designed to reduce strain on terminations.Wire Entry: Funnel-shaped entry assists with wire termination.Dust Shield: Integral shield provides a barrier against dust or contaminants entering the wiring chamber.Cable Range: Accepts cord diameters from 0.360 in to 0.930 in; accommodates #16 AWG to #8 AWG stranded copper wire only.Material Construction: Housing made of natural white nylon with brass contacts; insulated body design enhances durability and performance.Electrical Ratings: Rated for up to 30 A at 125V AC; withstands dielectric voltage of minimum 2,000V; maximum continuous operating temperature of 75°C, minimum -40°C without impact.NEMA Configuration: L5-30R receptacle type with grounded design and standard wiring style.Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 standards.
