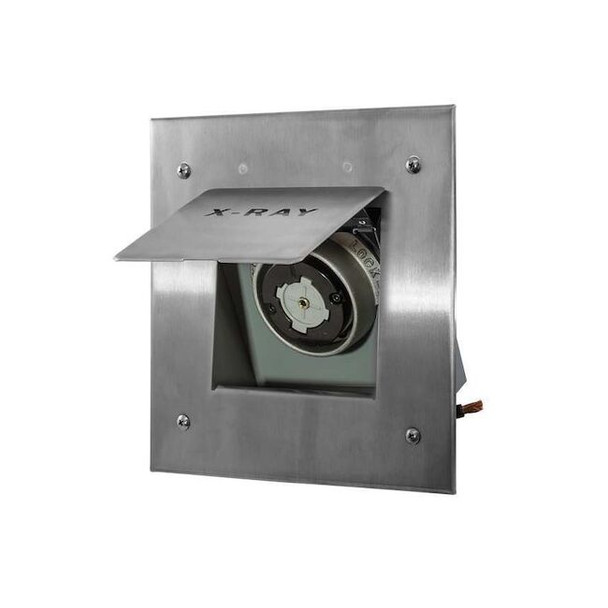

Hubbell Wiring Device-Kellems HBL25505

The HUBBELL 50A Hospital Locking Receptacle is a single, flush-mount electrical receptacle suitable for use with mobile X-ray devices and other applications that require a secure, high-capacity connection. Rated for 50 amps and 250V AC, this hospital-grade device features a non-NEMA configuration with two poles and three wires. The receptacle includes a stainless steel plate and is constructed from impact- nylon with screw terminal connections.Key Features of the HUBBELL 50A Hospital Locking Receptacle: Amperage/Voltage: Rated for 50 A at 250V ACConfiguration: Non-NEMA, polarized, single-phase; two poles, three wiresMounting Type: Flush mount with rectangular flange; screw mounting hardware includedMaterial: Impact- nylon housing with stainless steel plateWire Size Compatibility: Accepts up to #4 AWG wire via screw terminalsNEMA Enclosure Rating/IP Rating: NEMA 3R enclosure rating; IP30 protection level (indoor dry locations unless otherwise protected)Grade/Certification: Hospital grade; CSA certified and UL listedResistance Properties: Features an impact- housing in demanding settings
