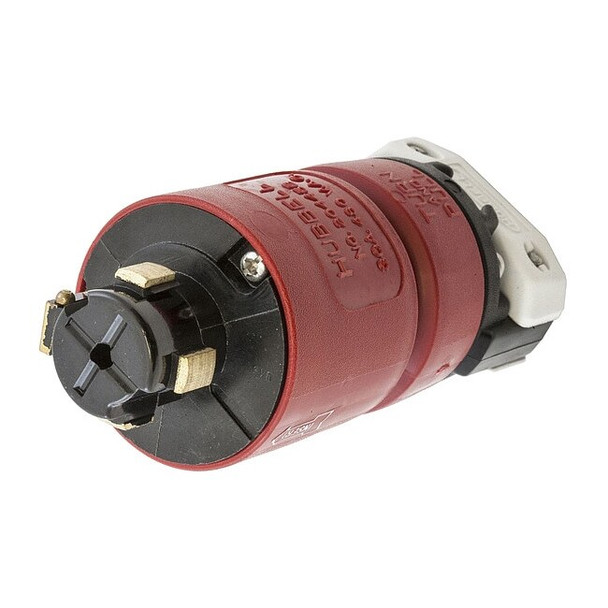

Hubbell Wiring Device-Kellems HBL20445B

The HUBBELL 30A Locking Plug 3P 4W 480VAC RD is an industrial-grade locking plug intended for use in industrial environments requiring locking plug configurations. It features a nylon housing for impact resistance and uses screw terminals compatible with #10 AWG to #6 AWG stranded copper wire. Molded-in brass male contacts are integrated into the nose.Key Features of the HUBBELL - 30A Locking Plug: Amperage/Voltage Rating: Rated for 30 A at 480V ACConfiguration: Non-NEMA, four blades; three poles, four wires; groundedCable Range: Accepts cables from 0.700" to 1.200" diameterWire Size Compatibility: Supports #10 AWG to #6 AWG stranded copper wireNylon body constructionConnection Type: Screw terminals with pressure pads enhance termination strengthMolded-In Contacts: Brass male contacts are integrated into the noseStrain Relief: Three-piece clamp assembly designed to help limit strain, moisture, and dust entry at connection pointOperating Temperature Range: Suitable for continuous use from -40°C to +75°C (without impact)Flammability Rating & Standards Compliance: UL94 V-0 flammability rating; CSA Certified; UL Listed
