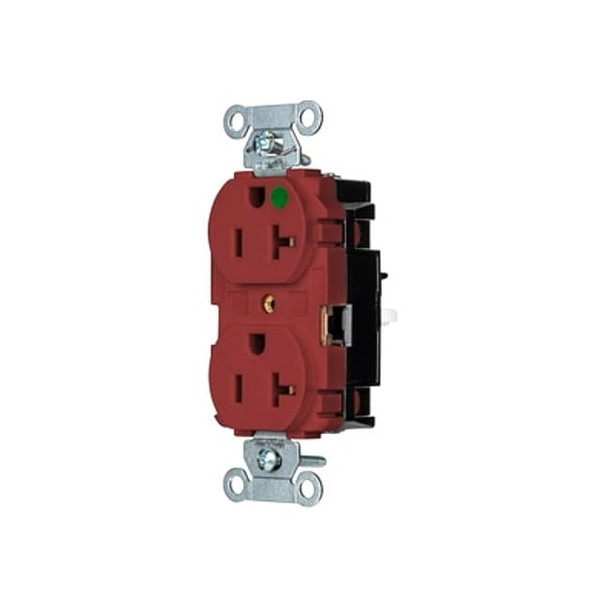

Hubbell Wiring Device-Kellems 8300STR

The HUBBELL Duplex Straight Blade Receptacle is a CSA Certified, UL Listed, Fed. Spec., NEMA WD-6 compliant electrical outlet designed for commercial indoor use in dry locations. It features the EdgeConnectâ„¢ screwless termination system; wires are inserted and secured using a plunger mechanism. This duplex receptacle provides two receptacle openings and supports back wiring with push-in connections.Key Features of the HUBBELL Duplex Straight Blade Receptacle: Current Rating: 20 AVoltage Rating: 125V ACNEMA Configuration: 5-20RWire Connection Type: Push In; Back wired screwless terminationWire Size Compatibility: Accepts 10 AWG to 14 AWG wiresTamper- design: YesGrounding: Grounded design with copper alloy contactsMount Type: Surface mount; includes mounting hardwareFace Plate Dimensions (H x W): 2.8 in x 1.6 in; Overall Depth: 1.4 in; Mount Hole Center-to-Center Height: 3.3 inHousing Material/Color: housing, red colorNEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20 (indoor use)Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)Standards Compliance: CSA Certified, UL Listed, Fed. Spec., NEMA WD-6 compliant
