Thermal Dynamics Plasma Cutter,120A,2in Cap.,70psi 1-1730-1

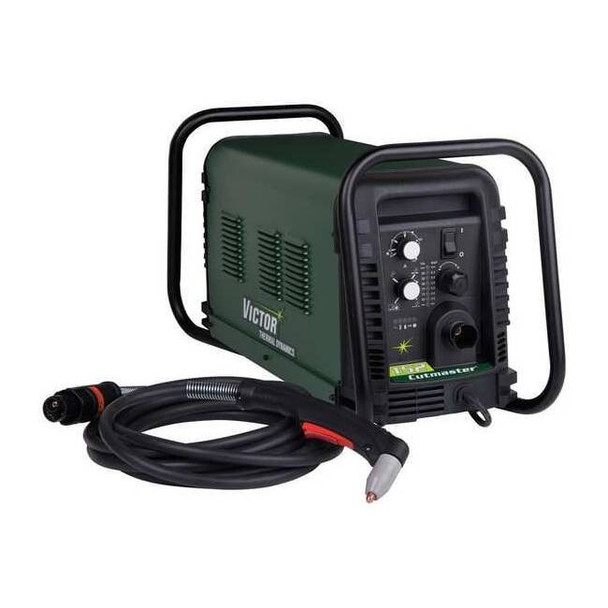

The THERMAL DYNAMICS Cutmaster 152 (model 1-1730-1) is an inverter-design plasma cutter rated for plasma cutting of ferrous and nonferrous metals up to 2 in maximum thickness (per cutting capacity specifications). It ships with a handheld SL100 75° torch and consumables. Key Features: Model/series: 1-1730-1, Cutmaster 152 Process: Plasma cutting (handheld torch) Cutting capacity: up to 2 in maximum thickness; minimum material thickness 1/8 in For material types: mild steel, stainless, aluminum; applicable to ferrous and nonferrous metals Rated/maximum output current: 120 A; plasma cutting minimum output 10 A Duty cycle specs: duty cycle is 60% at 120 A (per duty-cycle specifications); listed plasma cutting outputs: 100 A at 100% duty cycle; 120 A at 80% duty cycle (per specifications) Input / electrical: input voltage 208 V AC / 230 V AC (effective input 208–230 V); input current 27/56 A; input frequency 50/60 Hz; max input current 120 A @ 230 V (single-phase) Open-circuit voltage (OCV): 320 V Air requirements: maximum air pressure 70 psi; required air flow 7.5 cfm Torch and leads: includes SL100 75° hand torch with 20 ft lead and consumables kit; cutting cable length 20 ft; work lead with ground clamp; ground cord length 10 ft Physical / connections: inverter design; plug type bare leads; power cord length 10 ft Dimensions and weight: 30 in depth x 12 in width x 15 in height; weight 28.1 kg
