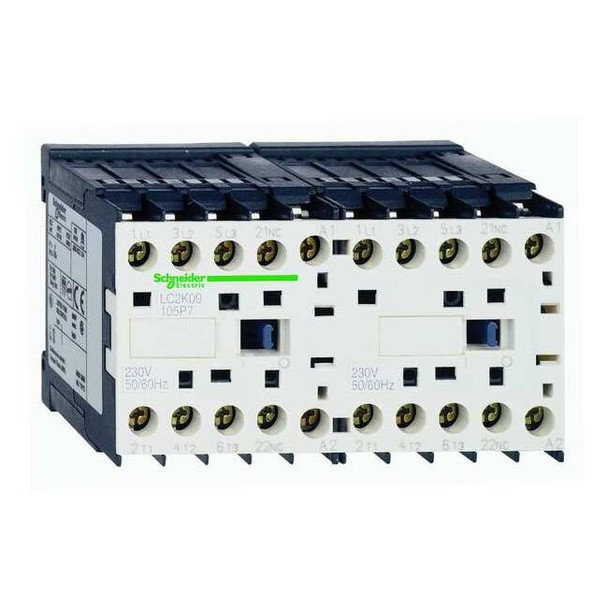

IEC Miniature Magnetic Contactor, 1NC, 240V AC, 3 P, Reversing, Screw Clamp LC2K0601U7

The IEC Miniature Magnetic Contactor is a compact, electrically operated switching device used to control motor-related loads in line with IEC standards. It is a 3-pole reversing contactor with a 240 V AC coil and screw clamp terminals, featuring 1 normally closed auxiliary contact (1NC). It is part of the TeSys K series and has no enclosure, rated for operation within the specified voltage range of up to 690 V AC. - Action: Reversing - Application: Motor Control - Coil Voltage: 240 V AC - Contactor Style: IEC - Series: TeSys K - Poles: 3 - Auxiliary Contacts: 1 NC (Includes auxiliary contact) - Auxiliary Contact Configuration: 1NC - Electrical Connection: Screw Clamp Terminals - Rated Voltage: 690 V AC - IP Rating: IP20 - Enclosure: No Enclosure - Mounting: DIN Rail, Plate - Dimensions (W x H x D): 3.54 in × 2.28 in × 2.24 in - Net Weight: 0.39 kg - Full Load Amps: Inductive 6 A; Resistive 15 A - Rated Making Capacity: 110 A - Mechanical Durability: 5 Mcycles - Electrical Durability: 1.3 Mcycles - Frequency: 50/60 Hz - Operating Time: 10 to 20 ms
