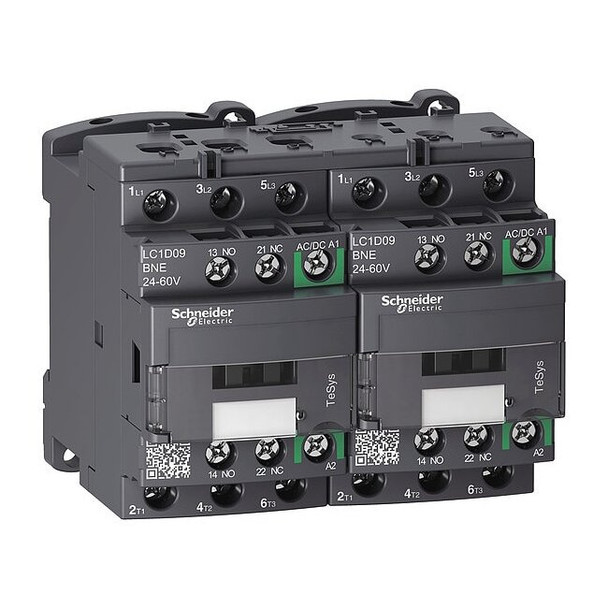

IEC Magnetic Contactor, 1NC-1NO, 24V-60V AC-DC, 3 P, Reversing, Screw Clamp LC2D09BNE

The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing, IEC-style contactor rated for operation with motor control and resistive loads within specified parameters. It features a 24–60 V AC/DC coil and 1NO/1NC auxiliary contacts, with screw clamp terminals for wiring. The device is part of the TeSys Deca series and is compatible with IEC standard mounting configurations as specified, mounted on DIN rails or plates. - Poles: 3; Reversing: Yes - Coil Voltage: 24–60 V AC/DC - Auxiliary Contacts: 2 total (1NO/1NC) - Electrical Connection: Screw Clamp Terminals - Enclosure/NEMA: No Enclosure; IP20 - Mounting: DIN Rail, Plate; Mounts On: Plate, Rail - Rated for operation up to 690 V AC within specified conditions - Full Load Currents: 9 A (Inductive), 20 A (Resistive) - Series/Frame: TeSys Deca - Frequency: 50/60 Hz - Rated Making Capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) - Electrical Durability: tested for electrical durability under specified load conditions; actual lifespan may vary based on usage - Mechanical Durability: 15 Mcycles - Inrush VA / Holding VA: 15 VA / 0.9 VA - Impulse Withstand Voltage: 6 kV - Impedance: 2.5 mΩ - Auxiliary/Protection: Includes Auxiliary Contacts: Yes; Includes Protective Cover: Yes; Embedded Surge Suppressor: No - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 - Dimensions: Width 3.54 in; Depth 3.39 in; Height 3.03 in - Weight: 0.783 kg - Rated to operate within the specified temperature ranges; actual performance may vary depending on environmental conditions - Other: Normal Operation Temperature Range, Shock: 15 G (Closed), 10 G (Open); Vibration: 4 G (Closed), 2 G (Open)
