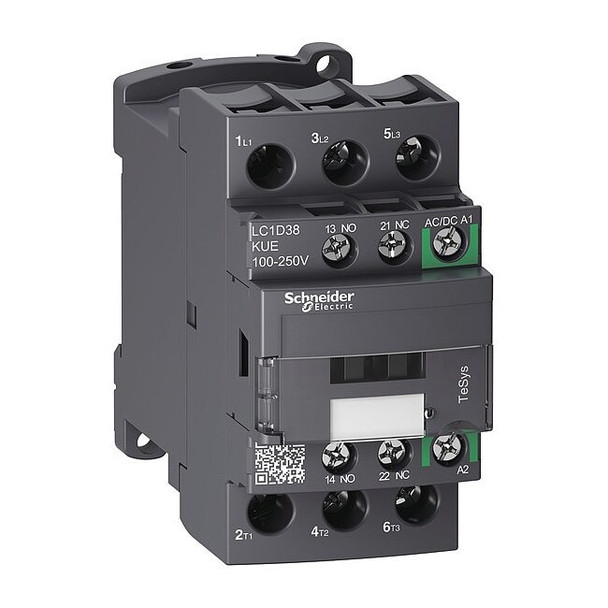

Schneider Electric LC1D38KUE

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with a coil rated for operation within the specified voltage ranges (100–250 V AC/DC). It includes two auxiliary contacts (1 NO and 1 NC) and three normally open main contacts. Wiring is via screw clamp terminals, and the unit includes a protective cover; enclosure rating: IP20. It is part of the TeSys Deca series and intended for use in motor control and resistive-load applications when installed according to applicable standards. - Poles: 3; Main Contacts: 3 NO - Auxiliary Contacts: 2 (1 NO / 1 NC) - Reversing: Non-Reversing - Coil Voltage: 100–250 V AC/DC - Rated Voltage: 690 V AC - Full Load Current: up to 50 A (resistive loads) under specified conditions - Rated Making Capacity: has a rated making capacity as specified under standard testing conditions - Frequency: 50/60 Hz - Electrical Connection: Screw Clamp Terminals - Mounting: DIN Rail, Plate; Mounts On: Plate, Rail - Enclosure/IP Rating: IP20 - Protective Cover: Yes; Embedded Surge Suppressor: No - Impulse Withstand: tested for impulse withstand voltage of up to 6 kV under laboratory conditions - Hold VA: 1.6 VA; Inrush VA: 25 VA - Durability: designed durability based on standardized testing procedures; actual performance may vary depending on application - Dimensions (H×W×D): 3.35 in × 1.77 in × 3.62 in - Net Weight: 0.442 kg - Series: TeSys Deca; Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1 - Fire Rating: UL 94 V1; Overvoltage Category: CAT III - Phase: Three
