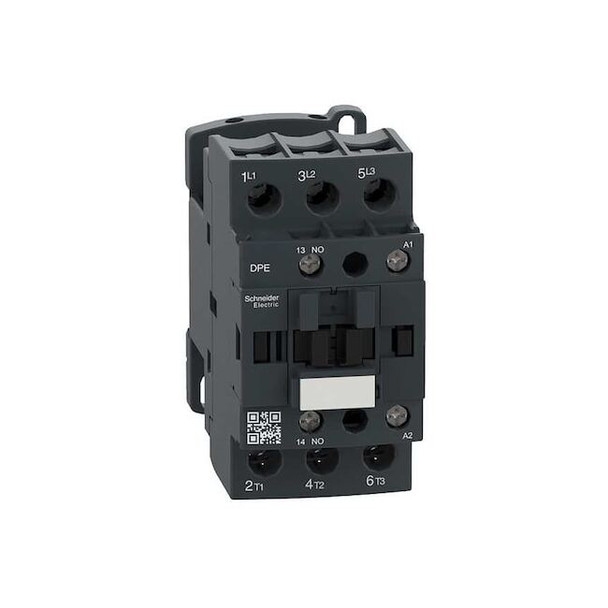

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp DPE38U7

The Schneider Electric IEC Magnetic Contactor (TeSys Easy) is a 3-pole, non-reversing electrical switch rated for operation within IEC standards. The device operates with a coil voltage of 240 V AC; supports switching of specified voltages within its rated parameters. The device is equipped with screw clamp terminals; compatible with DIN rail or plate mounting options; supplied without an enclosure. Key features - Poles/Main Contacts: 3 poles; 3 normally open main contacts - Auxiliary Contacts: 1 auxiliary contact (1NO) - Coil Voltage: 240 V AC - Rated Voltage: 690 V AC; 300 V DC - Reversing: rated as non-reversing (if applicable) - Series/Frame: TeSys Easy - Mounting/Terminals: DIN Rail, Plate; Screw Clamp - Enclosure/NEMA: Suitable for indoor use per NEMA ratings listed; actual enclosure requirements depend on application conditions. - Enclosure Rating: conforms to IP20 ingress protection rating under standard testing conditions. - Dimensions/Weight: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.375 kg - Frequency: 50/60 Hz - Durability: Electrical durability based on typical usage cycles under test conditions; actual lifespan depends on operational environment. - Max. Operating Watts: Rated for operation at specified voltages within the given ranges according to manufacturer specifications. - Special Features: Without Built-In Suppressor Module; Overvoltage Category III; Minimum Switching Voltage 17 V (Signalling Circuit); Insulation Resistance 10 MΩ (Signalling Circuit) - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1 - Signalling/Includes: Includes auxiliary contacts; Yes
