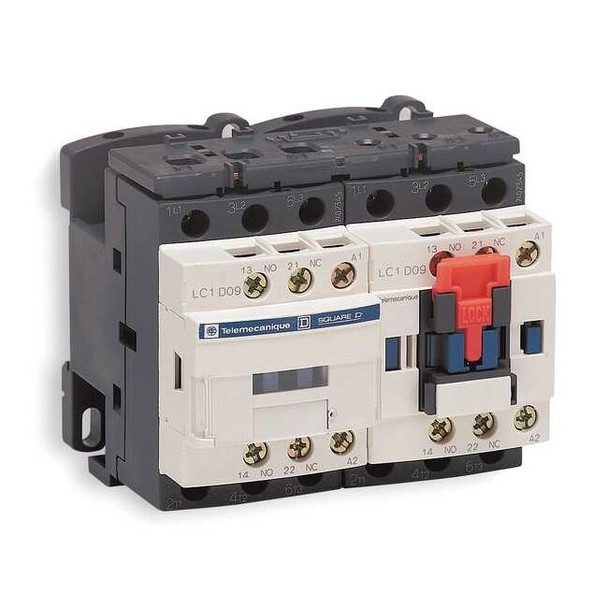

IEC Magnetic Contactor, 1NC-1NO, 24V AC, 3 P, Reversing, Screw Clamp LC2D25B7V

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is intended for use in motor control and resistive load applications. It operates with a coil voltage of 24V AC, making it suitable for various industrial settings. The contactor features screw clamp terminals for electrical connection and has an operational depth of 3.54 inches. With a frame from the TeSys series, this product is rated for handling full load amps-inductive up to 25 A and full load amps-resistive up to 40 A. Key Features: - Auxiliary Contact Configuration: This feature includes both normally open (1NO) and normally closed (1NC) contacts. - Control Circuit Voltage Limits: These limits range from drop-out AC at 0.3 to 0.6 Uc (-40 to 70°C at 50/60 Hz) to operational AC at varying levels depending on temperature conditions. - Electrical Durability: The contactor has a specified electrical durability with cycles ranging from 1.4 Mcycles (at less than 440 V in AC-1 mode) to as high as 1.65 Mcycles (at less than or equal to the same voltage in AC-3 mode). - Horsepower Ratings: Horsepower ratings may vary based on phase and voltage, including two horsepower (@ single phase -120VAC), three horsepower (@ single phase -240VAC), five horsepower (@ three-phase -208VAC), seven-and-a-half horsepower (@ three-phase -240VAC), fifteen horsepower (@ three-phase -480VAC), and twenty horsepower (@ three-phase –600 VAC). - Maximum Operating Temperature & Minimum Operating Temperature: The device is designed for operation within the specified temperature range of minus forty degrees Fahrenheit to one hundred forty degrees Fahrenheit. -Mounting Style: This magnetic contactor is compatible with both DIN rail mounting style and plate mounting style. -Rated Breaking Capacity: The manufacturer rates the breaking capacity of the contactor at 450A at 440V. -Resistance Properties: This product features fire resistance properties along with insulation resistance according to manufacturer specifications.
