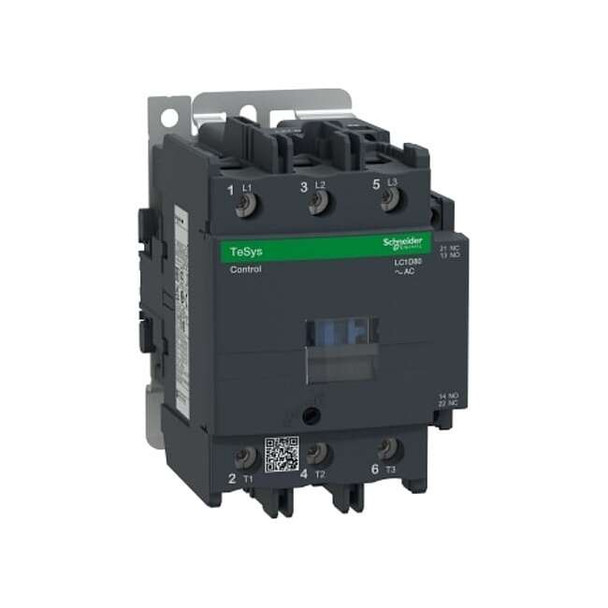

IEC Magnetic Contactor, 1NC-1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D80G6

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with a coil voltage of 120V AC. It's intended for use in motor control and resistive load applications. The contactor has an auxiliary contact configuration of 1NO/1NC and uses screw clamp terminals for electrical connection. Its operational AC control circuit voltage limits range from 0.85 to 1.1 Uc at temperatures between -40 to 55°C (60 Hz), and from 1 to 1.1 Uc at temperatures between 55 to70°C (60 Hz). The drop-out AC ranges from 0.3 to 0.6 Uc at temperatures between -40 to70°C (60 Hz). Key features include: - Electrical durability: Tested to withstand up-to .8 Mcycles under less than or equal to440 V conditions. - Fire rating: Has been certified UL94 V-1, which indicates it has demonstrated the ability to self-extinguish within ten seconds after the ignition source is removed in testing scenarios. - Full Load Amps: Rated for handling inductive loads up-to80 A and resistive loads of up-to125 A. - Horsepower compatibility: Compatible with various horsepower ratings depending on the phase and voltage; e.g.,15 hp @ single phase -240V AC,30 hp @ three-phase -208V AC, etc. - Mechanical Durability: Tested for mechanical durability of upto10 Mcycles. - Mounting Style: Compatible with DIN Rail mounting style for easy installation. - Rated Breaking Capacity: The product's rated breaking capacity is specified as1100 A @440V -Reversing Capability: This product does not have reversing capability which means it cannot change the direction of current flow automatically.
