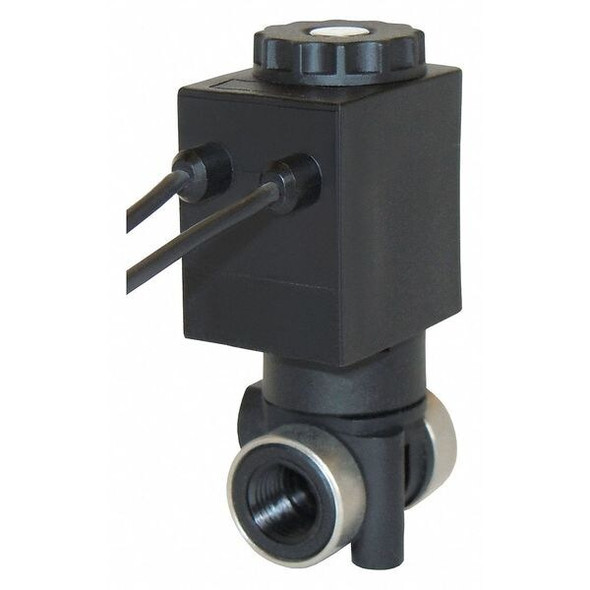

Spartan Scientific 3827-B60-AA87B

The SPARTAN SCIENTIFIC 3827-B60-AA87B is a 2-way, 2-position normally closed solenoid valve intended for use with air, caustics, light oil, and water within the listed operating pressure and temperature ranges. It features a direct-acting operation method with a straight valve body style and is constructed from glass-filled nylon. The valve controls the flow of air, caustics, light oil, and water through a 1/8-inch nominal pipe size inlet and outlet, both with NPT threaded connections. It includes a coil and sealing components for installation and coil enclosure rated IP65 and NEMA 4. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Operation Type: Direct Acting - Body Material: Glass Filled Nylon - Connection Types: NPT inlet and outlet - Orifice Diameter: 5/64 inch - Nominal Pipe Size: 1/8 inch - Coil Included: Yes, with wire leads electrical connections - Coil Insulation Class: F - Wattage: 6.5 W - Media Compatibility: Air, Caustics, Light Oil, Water - Operating Pressure Differential Maximum: 200 psi for Air/Inert Gas, Light Oil, and Water - Ambient Temperature Range: 50°F to 122°F - Fluid Temperature Maximum: 194°F - Seal Material: Buna N - Outdoor use is supported by IP65 and NEMA 4 enclosure ratings - Dimensions: Overall Height 2-13/32 in, Length 1-3/32 in, Width 1-3/32 in - Standards: CE Certified
