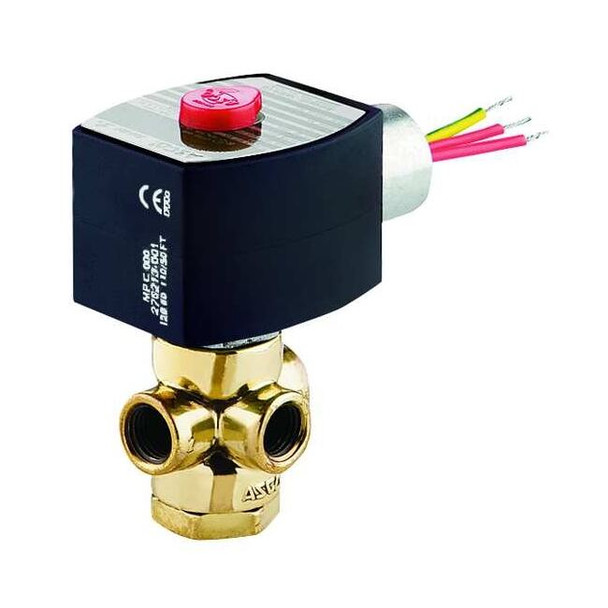

Asco EF8320G17424-DCDD

The ASCO EF8320G17424/DCDD is a brass-bodied 3-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a configurable starting position and supports mounting in both horizontal and vertical orientations. The valve's operating pressure differential ranges from 0 to 100 psi, functioning up to a maximum fluid temperature of 200°F. It includes the coil and sealing components for installation and has electrical connections via 1/2 inch conduit with 18 inch leads. The valve is intended for controlling the flow of air, inert gases, light oil, and water. Key Features: - Body Material: Brass - Valve Design: 3-Way/2-Position with Configurable starting configuration - Operation Type: Direct Acting - Nominal Pipe Size: 1/4 in; Center Line Pipe Center Size: 1-13/16 in - Orifice Diameter: 3/32 in - Coil: Included; Coil Insulation Class F; Wattage: 17.1 W; Coil Enclosure: Explosion Proof, Watertight - Electrical Connections: 1/2 in Conduit with 18 in Leads - Seal Material: NBR - Maximum Fluid Temperature: 200°F - Operating Pressure Differential: 0 to 100 psi for Air/Inert Gas, Light Oil, and Water - Valve Type: Direct Mount - Mounting Orientation: Horizontal or Vertical - Environmental suitability: indoor and outdoor use - Inlet/Outlet Connection Type: NPTF with NPT thread type - Dimensions: Overall Height 3-11/16 in; Overall Length 1-11/16 in; Overall Width 1-13/16 in - Standards: ATEX, CSA, IIECEx, UL Listed
