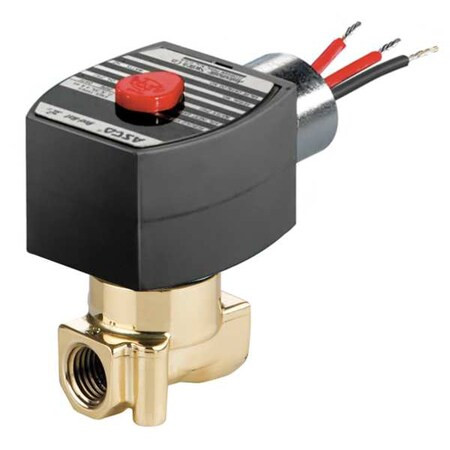

Asco EF8262H014

The ASCO EF8262H014 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass body and NBR seal material, designed to control the flow of air, inert gas, light oil, and water. The valve is supplied with a coil enclosed in a housing with explosion-proof and watertight construction, and operates at 120V AC with a power consumption of 6.1 watts. It is suitable for installation in either horizontal or vertical orientations and is rated for ambient temperatures ranging from -13°F to 131°F, with a maximum fluid temperature of 180°F. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Operation Type: Direct Acting - Body Material: Brass - Seal Material: NBR - Media Compatibility: Air, Inert Gas, Light Oil, Water - Electrical: 120V AC, 60 Hz, 6.1 W power consumption - Coil Enclosure: Explosion Proof, Watertight, includes coil - Electrical Connection: 1/2 in Conduit with 18 in Leads - Mounting Orientation: Horizontal or Vertical - Maximum Ambient Temperature: 131°F - Minimum Ambient Temperature: -13°F - Maximum Fluid Temperature: 180°F - Operating Pressure Differential Maximums: 370 psi Air/Inert Gas, 190 psi Light Oil, 330 psi Water - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water - Orifice Diameter: 3/32 in - Nominal Pipe Size: 1/8 in - Connection Type: NPTF inlet and outlet - Dimensions (H × L × W): 2-27/32 in × 1-3/16 in × 1-11/16 in - Response Time: 1 sec - Certifications: CE, CSA, FM, UL Listed
