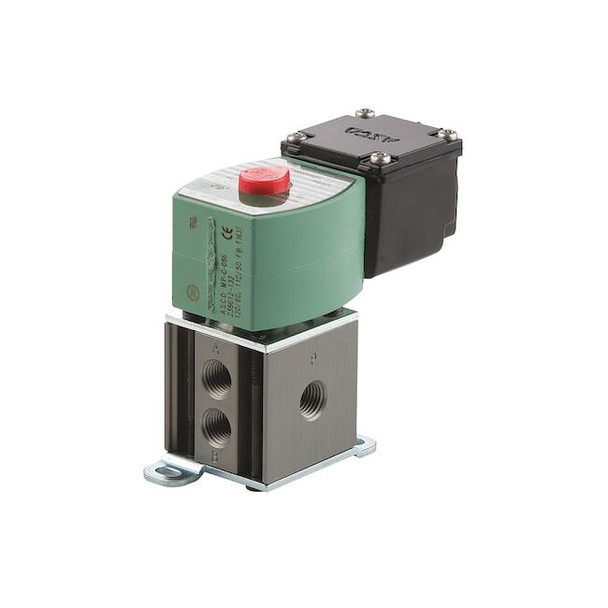

Asco JSP8340G001

The ASCO JSP8340G001 is a 4-way, 2-position solenoid valve designed to control the flow of air and inert gases by using an coil to actuate the valve mechanism. Constructed with an aluminum body and equipped with a PE seal, it operates with a nominal pipe size of 1/4 inch and a valve orifice diameter of 1/16 inch. This valve offers a coefficient of volume (Cv) of 0.1 and can handle a maximum fluid temperature of 130°F. Its electrical coil includes an IP66-rated junction box enclosure, operates at 120V AC with a wattage of 17.1 W, and has a thermal insulation class F. The product provides IP66-rated environmental protection against dust and water ingress. Key Features: - Valve Design: 4-Way/2-Position - Body Material: Aluminum - Seal Material: PE (polyethylene) - Nominal Pipe Size: 1/4 in - Orifice Diameter: 1/16 in - Coefficient of Volume (Cv): 0.1 - Maximum Fluid Temperature: 130°F - Operating Pressure Differential: 0 to 150 psi for Air/Inert Gas; 0 to 145 psi for Light Oil - Electrical Connections: Spade Terminal - Coil Enclosure: IP66-rated junction box enclosure - Coil Insulation Class: F - Voltage: 120V AC - Wattage: 17.1 W - Environmental Rating: Indoor, Outdoor - IP Rating: 66 - Includes: Coil and Seal - Standards: UL Listed - Overall Dimensions: Length 1-15/16 in, Width 1-15/16 in, Height 4-1/8 in - Valve Type: Inline Single
